ABS 100 - Installation and Setup; Inflow Side Connections

Installation and Operating Instructions 7
ABS lifting station PiranhamatABS lifting station Piranhamat
4 Set up and Installation of the Piranhamat 100/120
ATTENTION A maximum of a one toilet, one wash-hand basin, one bidet and a single shower tray
may be simultaneously connected to the Piranhamat 100/120 unit. The WC must be
directly connected without the use of an intermediate pipeline to the Piranhamat
100/120 unit.
m
The inow lines from the wash-hand basin and the shower tray must have an inow height such that
the lowest part of the inow line has an inow height of at least 180 mm. This is to ensure that the
inow lines can discharge fully by gravity, and that back-up cannot occur.
ATTENTION see note under 1.2.1 (* version with part no.07500320/07565092)
4.1 Installation-inowside
ATTENTION When installing the discharge line ensure that Section 5.1.1 Discharge line is
observed.
The Piranhamat 100/120 (1) is designed for a direct toilet connection. The Piranhamat 100/120 unit is set-up
directly behind the toilet. The sealing sleeve should be drawn up directly on to the toilet outlet pipe DN 100 (3).
In order to comply with DIN standards the inow lines from the wash-hand basin bidet and shower tray must
be at least 180 mm above the container base and provision for inow by gravity must exist in order that these
inow lines will remain clear.

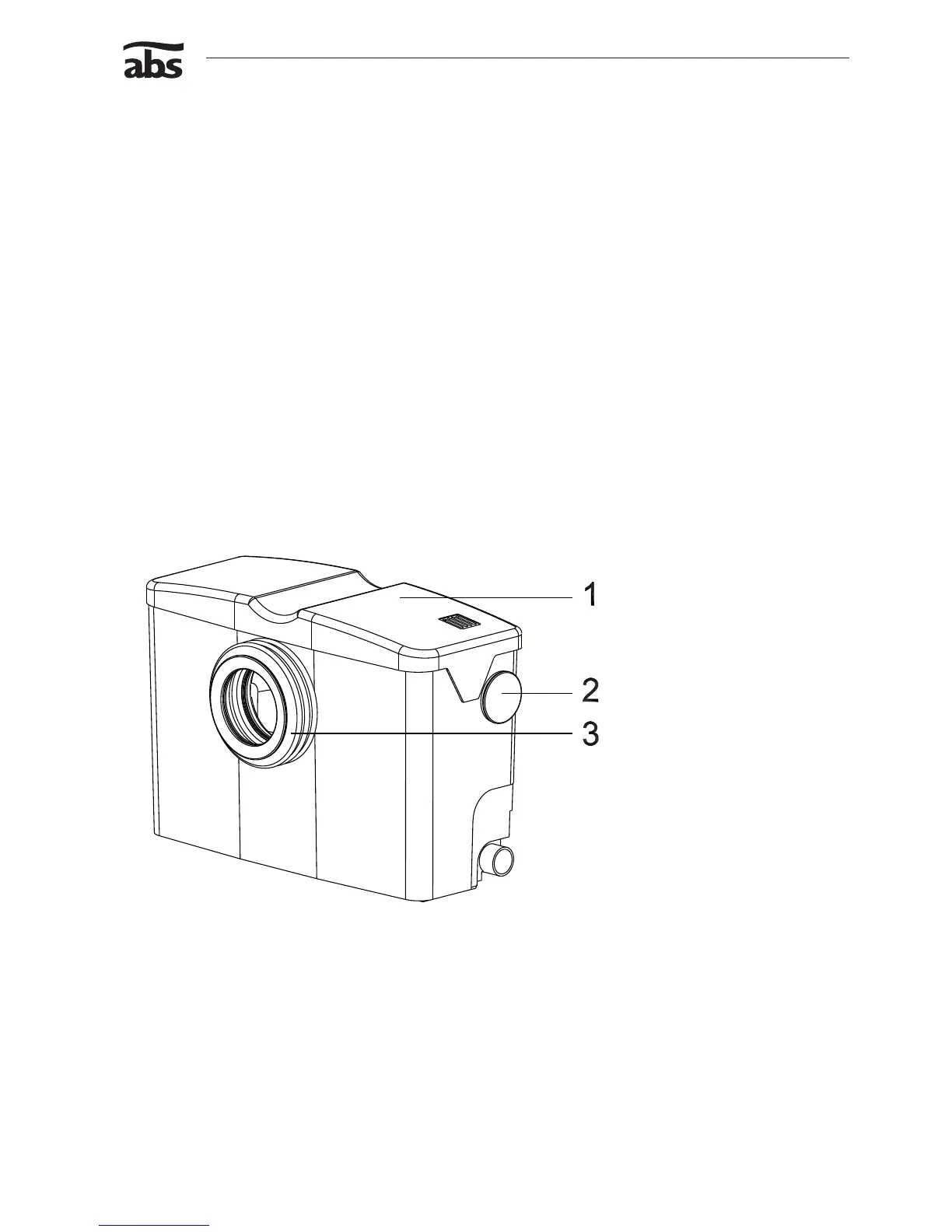

1 Piranhamat 100/120
1108-00
2 Connection for a wash-hand
basin, bidet or shower.
3 Sealing sleeve for direct
toilet connection.
Figure 5 Inows to the Piranhamat 100/120
