4.1.2 Venting
The venting and aeration of the unit can take place into a room via the activated carbon lter with overow
prevention supplied as standard. A separate vent line (external diameter 25 mm) brought above roof level may
be tted. This is done by removing the screen and inserting a pipe.
4.1.3 Connection of wash-hand basin, bidet or shower
A wash-hand basin or shower is connected by pressing the inow line (3) into the push-in seal of the upper inlet
opening (1) after removal of the plug. Make certain that it is pushed fully home.
ATTENTION The push-in seal must be inserted in such a manner that the pipe retaining shoulder
as well as the printed letters “OBEN” point upwards.
1 Inow opening upper. (In
some prototype models this
is only on the left hand side of
the tank.)
1110-00
2 Push in seal.
3 Inow DN 40.
4 Piranhamat 100/120..

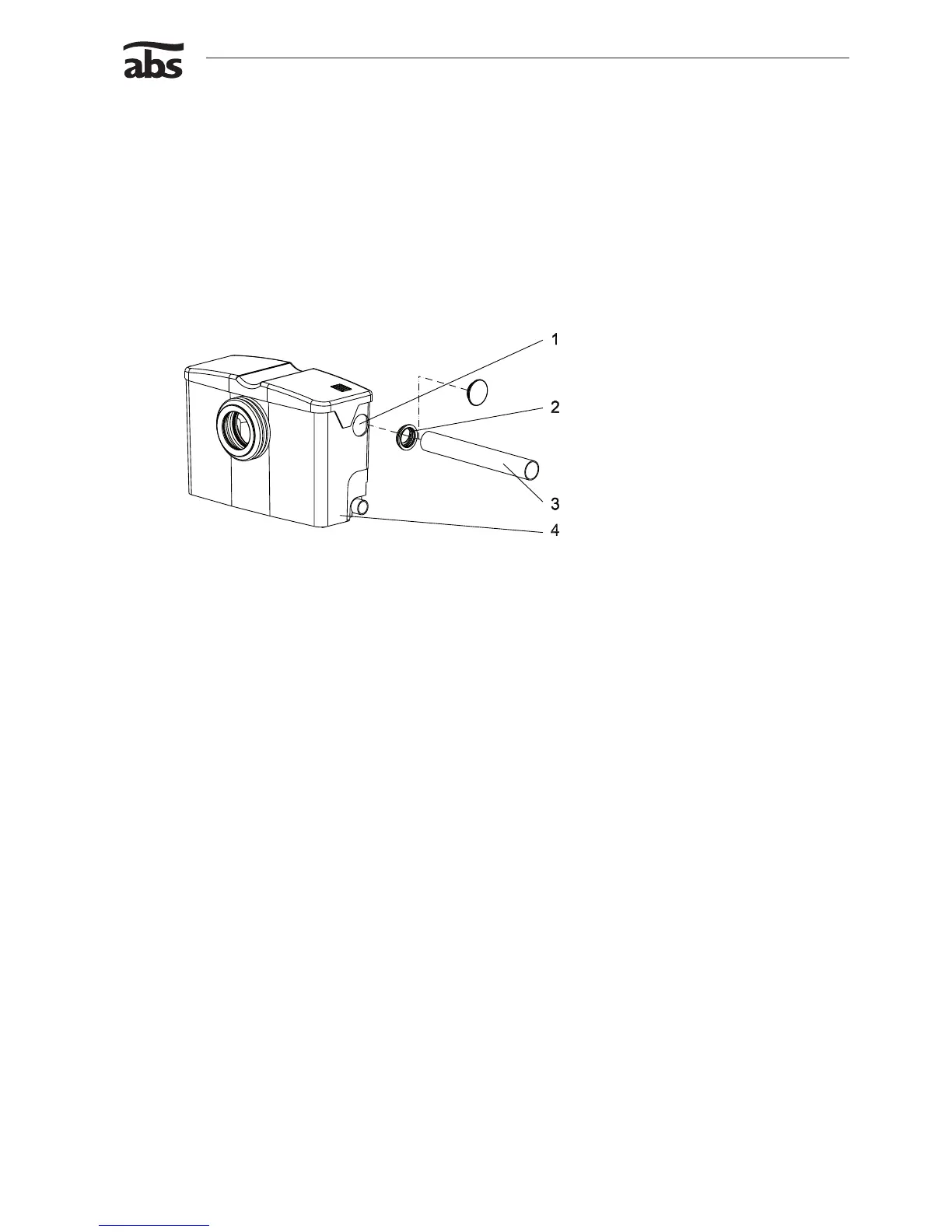

Figure 8 Connection of an inow line DN40
ATTENTION If exchanging a Piranhamat 100/120 of the new series for one of the older Piranhamat
models we recommend that you use the version part no. 07560320/07565092 with the
lower opening.
See note under 1.2.1
4.2 Electrical Connection
c
Before commissioning an expert should check that one of the necessary electrical protective devices
is available. Earthing, neutral, earth leakage circuit breakers, etc. must comply with the regulations
of the local electricity supply authority and a qualied person should check that these are in perfect
order.
ATTENTION The power supply system on site must comply with VDE or other local regulations
with regard to cross-sectional area and maximum voltage drop. The voltage stated on
the nameplate must correspond to that of the mains
This unit must be connected to a mains switch which isolates all poles.
All relevant safety regulators as well as general good technical practice must be complied with.
The unit is supplied ready for installation. An earthed socket (in accordance with VDE / Electrical Supply Board
guidelines) installed in a correct manner is all that is required.
ATTENTION The Piranhamat 100/120 unit should not be placed in a position where excessive
steamoroodingofthecompleteunitmayoccur.Shouldthisoccurpleasehavethe
unitthoroughlycheckedbeforeuse.
ATTENTION Theearthedsocketshouldcomplywiththerelevantregulations.
NOTE Please consult your electrician.
