6.3.4 Removal of the Piranhamat 100/120
1112-00

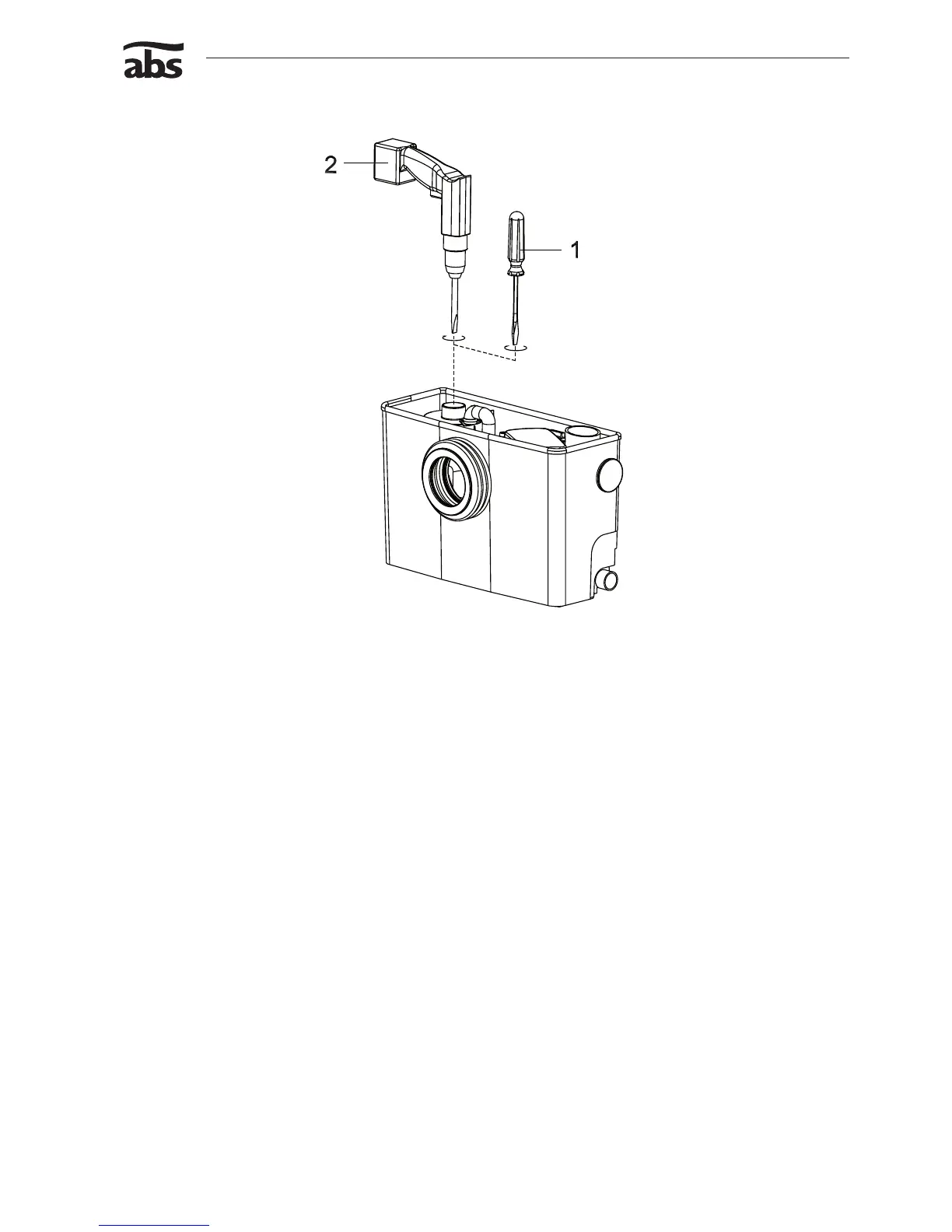

Figure 10. Emptying the Tank
Before dismantling the discharge and inow lines, it is possible to empty the tank by driving the pump by means
of an electric drill.
In order to do this,
Pull the latches (9/2) on the tank cover (9/1) lightly to the outside and lift off the cover (9/1).
Remove the oat protection (9/6).
Withdraw cap (9/7) from motorhousing.
Unscrew plugscrew (9/8) and clear a possible blockage of the cutting system by rotating the rotorshaft with a
screwdriver (10/1).
Finally t a drill with screwdriver attachment (10/2).
NOTE By driving the rotorshaft with an electric drill, the hydraulic system of the Piranhamat
100/120willbeoperatedandthetankemptied.
Switch on the drill and allow to run until the tank is empty.
Screw in plugscrew (9/8), t cap (8/7), replace oat protection (9/6) and replace tank cover (9/1).
Dismantle discharge and inow lines.
-
-
-
-
-
-
-
-
