Absenicon3.0 C138 User Manual

2.2.4 Install cabinet

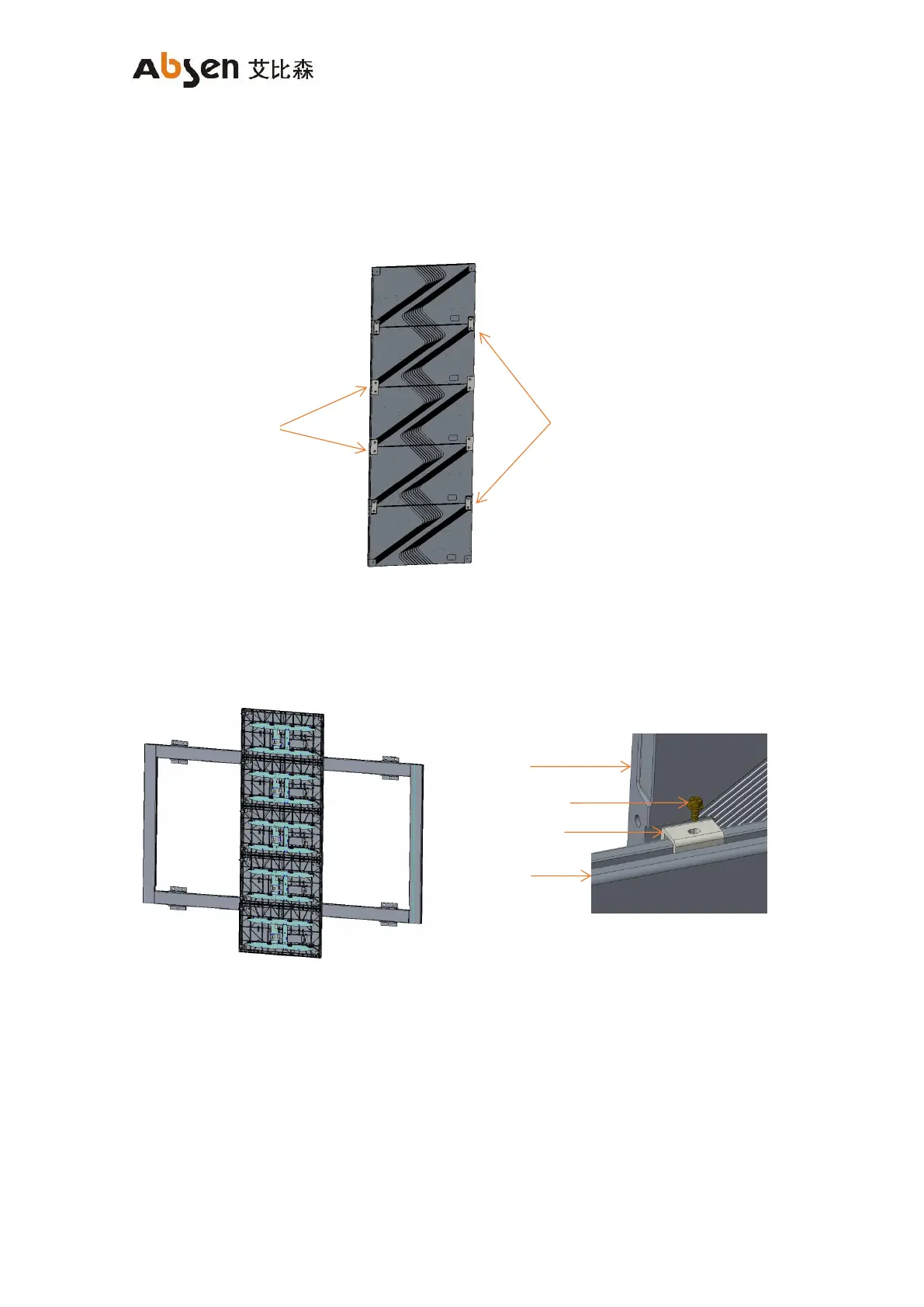

Hang the middle row of cabinet first, and hook connecting plate on the back of the cabinet into the

notch of the cross beam of the frame. Move the cabinet to the center and align the marking line on the

beam;

(1)

Install 4 M4 safety screws after the cabinet is installed;

Note: The internal structure is subject to the actual product.

Flat connecting plate

Hook connecting plate

Cabinet

M4 safety screws

Hook connecting plate

cross beam
