Absenicon3.0 C138 User Manual
(2) Hang the cabinets on the left and right sides in turn, and lock the left and right connecting bolts
on the cabinet. The four-corner hook connecting plate of the screen are flat connecting plate.
Note: The internal structure is subject to the actual product.
2.2.5 Install edging

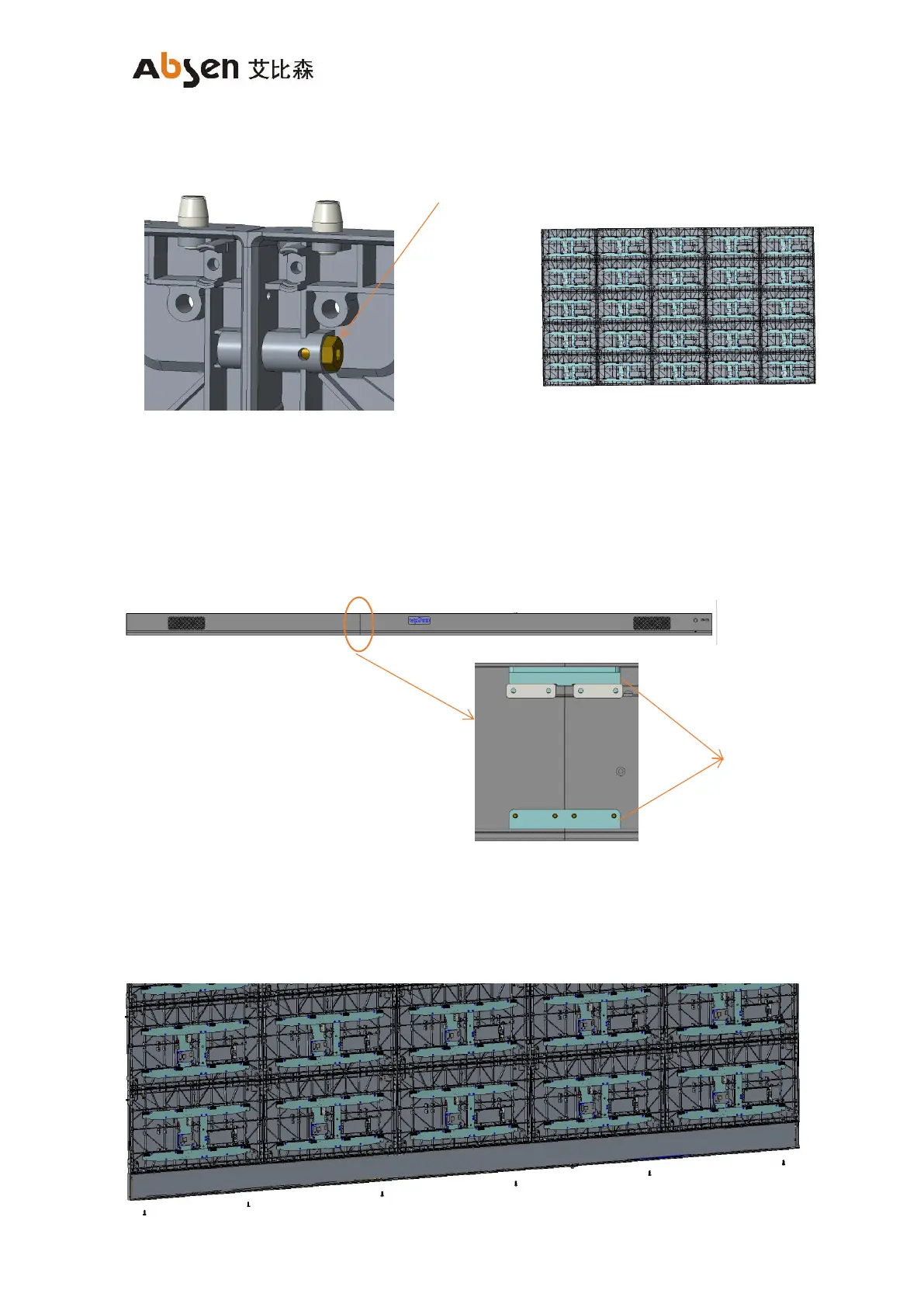

(1) Install the edging under the screen, and tighten the fixing screws of the left and right connecting
plates of the bottom edging (16 M3 flat head screws);
(2) Fix the lower edging to the bottom row of cabinets, tighten 6 M6 screws, and connect the power
and signal wires of the lower edging and the bottom cabinet;
Left and right
connecting bolts
