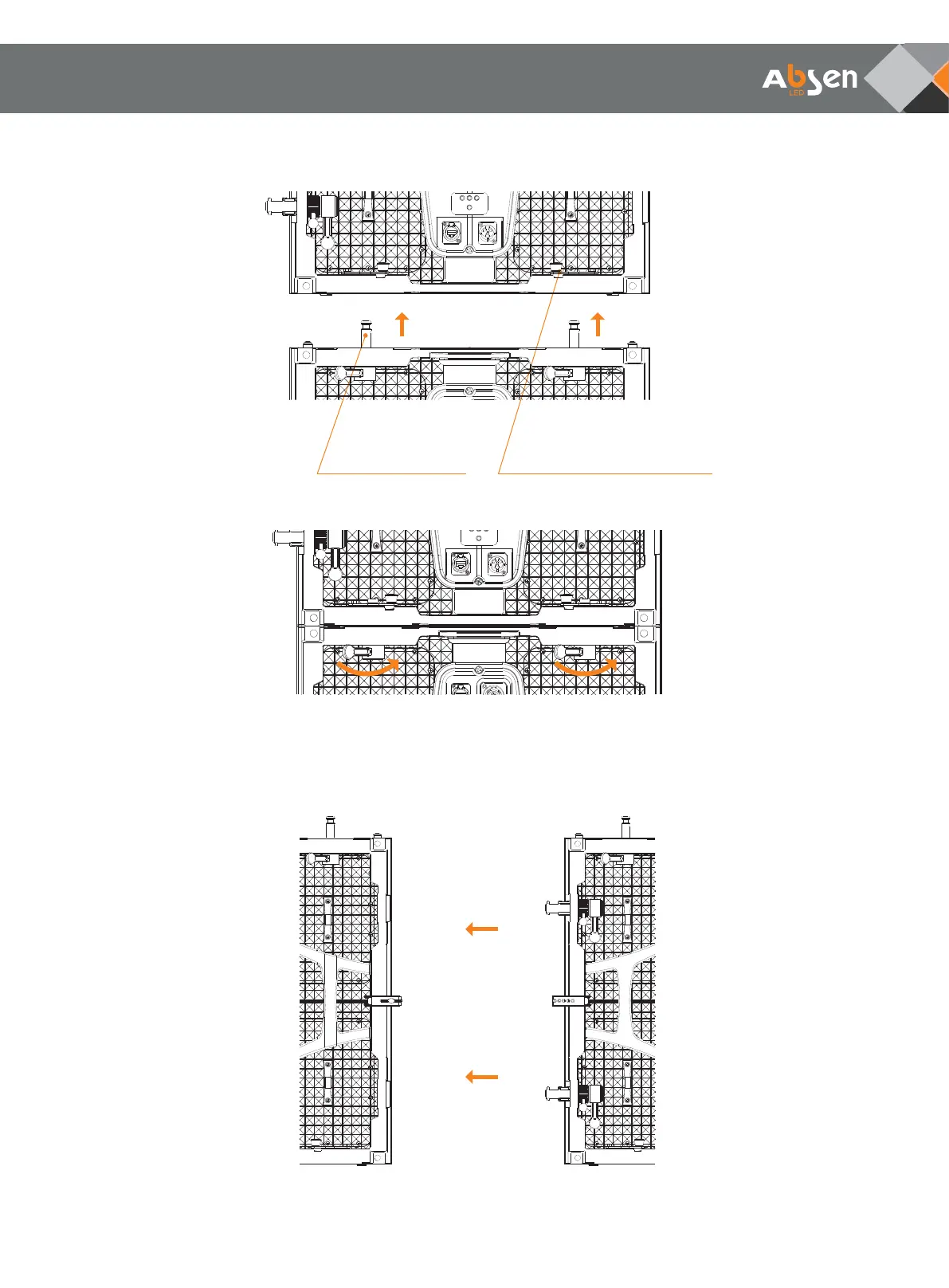

• For assembling left and right cabinet units, insert the left and right connector into the other cabinet unit’s
hole, and rotate the handle 90˚ upwards, as shown below.
Leading LED Applications
Step 1:
Insert the rigging bar pin
of cabinet unit into the
locking plate hole
Step 2:
Use hand to push the locking plate,
to make its straight-edge round hole
enter the rigging bar pin slot
To Next Page
