X3/X5/X7 User Manual
• After the locking plates are locked, rotate the handle lock nut, to lock the unit screen cabinet onto the
rigging bar.
Hold the screen cabinet unit B’s two lifting pins with both hands, insert according to the above method by
aligning to unit screen A’s locking plate hole, and then push the locking plate with both hands, to push the
locking plate straight-edge round hole into the rigging bar pin slot, release both hands from the unit screen,
then rotate the locking nut to lock the two screens.
- 13 -
Leading LED Applications
Horizontal Connection between Cabinets

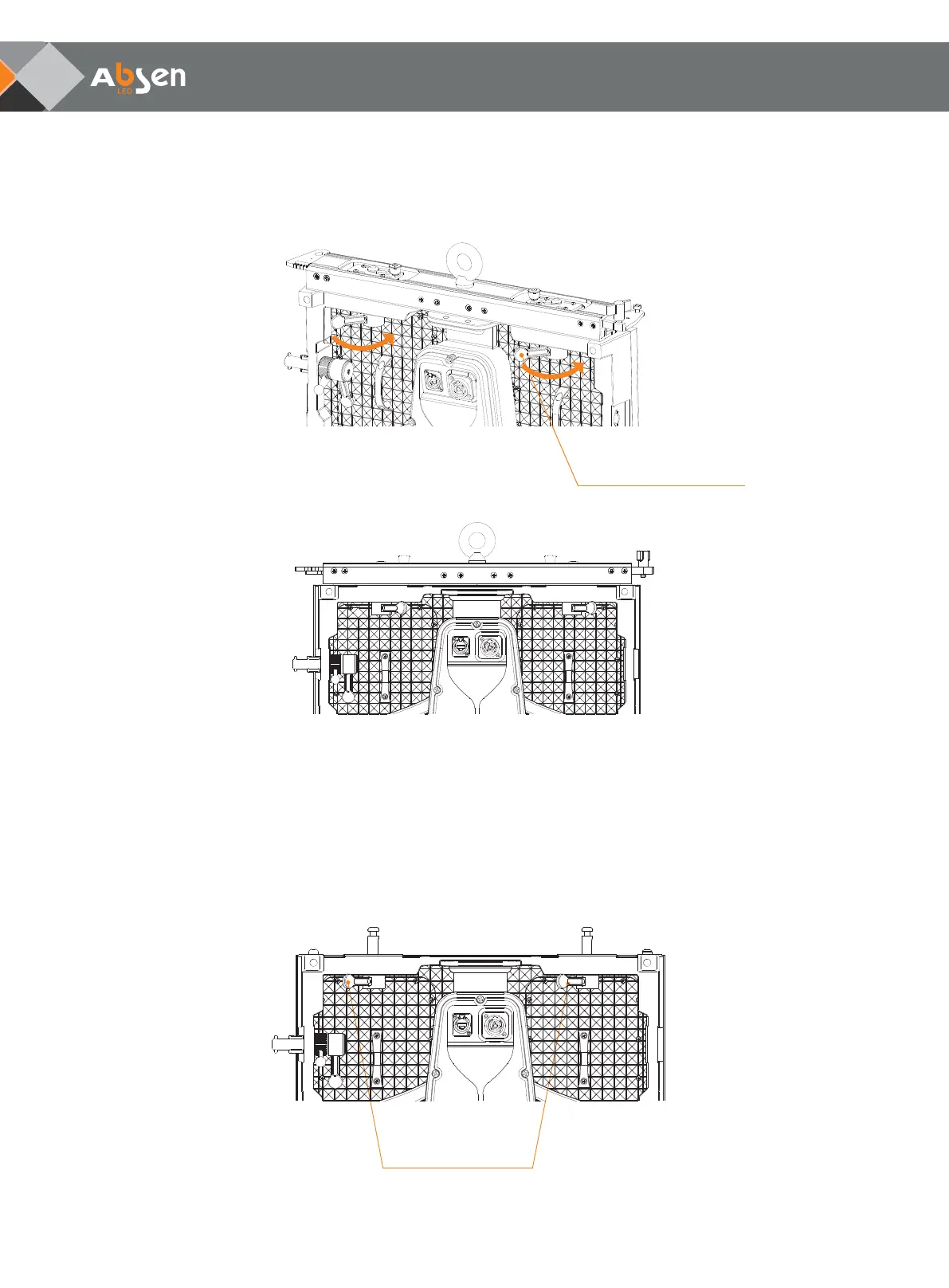

Rotate the handle nut to tighten,
lock the screen cabinet unit
attached to the rigging bar
Move cabinet connector
to "release" position
Rigging bar and Cabinet installation is completed
To Next Page
