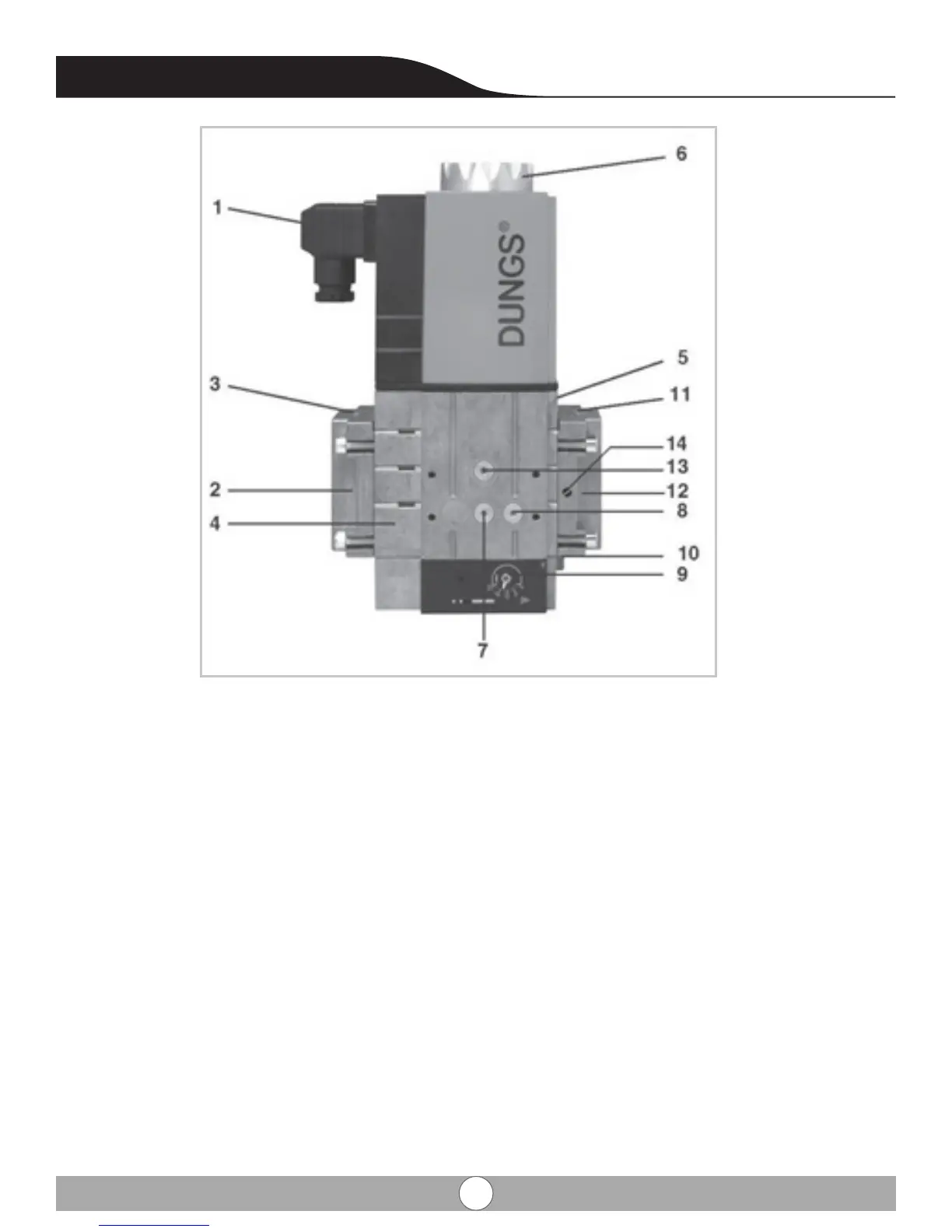

1. Electrical DIN Connector
2. Upstream Flange
3. G1/8 inlet test port
4. Filter
5. Valve Body
6. Coil
7. Test port connection #2, G 1/8 between V1 and V2; both sides.
8. Test port connection #3, G1/8 downstream of V2; both sides.
9. Regulator outlet pressure adjustment screw; both side
10. Vent-less regulator vent connection is G1/8 threaded. The brass vent limiting orice is 0.2mm in diameter.
11. Downstream ange
12. Test port connection #1, G1/8 upstream of V1; both sides.
13. Oset adjustment cover
