Page 8 Data : 01.03.2016
5Operation
5.1 Digital Operator Terminal
The integrated digital operator terminal (DBE) with LED
display and three–button keypad (Figur 1, items 1 to
4) is used for operating the unit and reading operating
parameters. The unit is normally in the power down
mode.Thisisindicatedonthedisplay(4) by a horizon-
tal bar running from left to right.
–
If the unit detects a lift signal (E6), the display show
steps running from bottom left to top right.
–
–
–
In the case of a lower signal (E2,) the steps run from top
left to bottom right.
–
–
–
Following each operation of the hoist, the current rea-
ding of the operating hours meter is shown on the dis-
play for about 3 seconds.
The parameter level consists of three operation levels.
In order to access level 3, a PIN authorized by ABUS
and a special CODE no. must be entered.
Menu level 2 is accessed by entering the PIN number
“0055”.
Menu level 1 us used solely for reading the values of the
load population recorder and is only available if the load
population recorder has been enabled. To reach this
menu level, press t he ENTER button for about 2 se-
conds and then enter the appropriate CODE number
(see Section 5.3)
If four incorrect attempts are made to enter a PIN or
CODE number, the menu level concerned is entirely di-
sabled and can only be enabled by A BUS.
In this case,
[no]
appears on t he display.
95
100
100
75
5
1
2
4
3

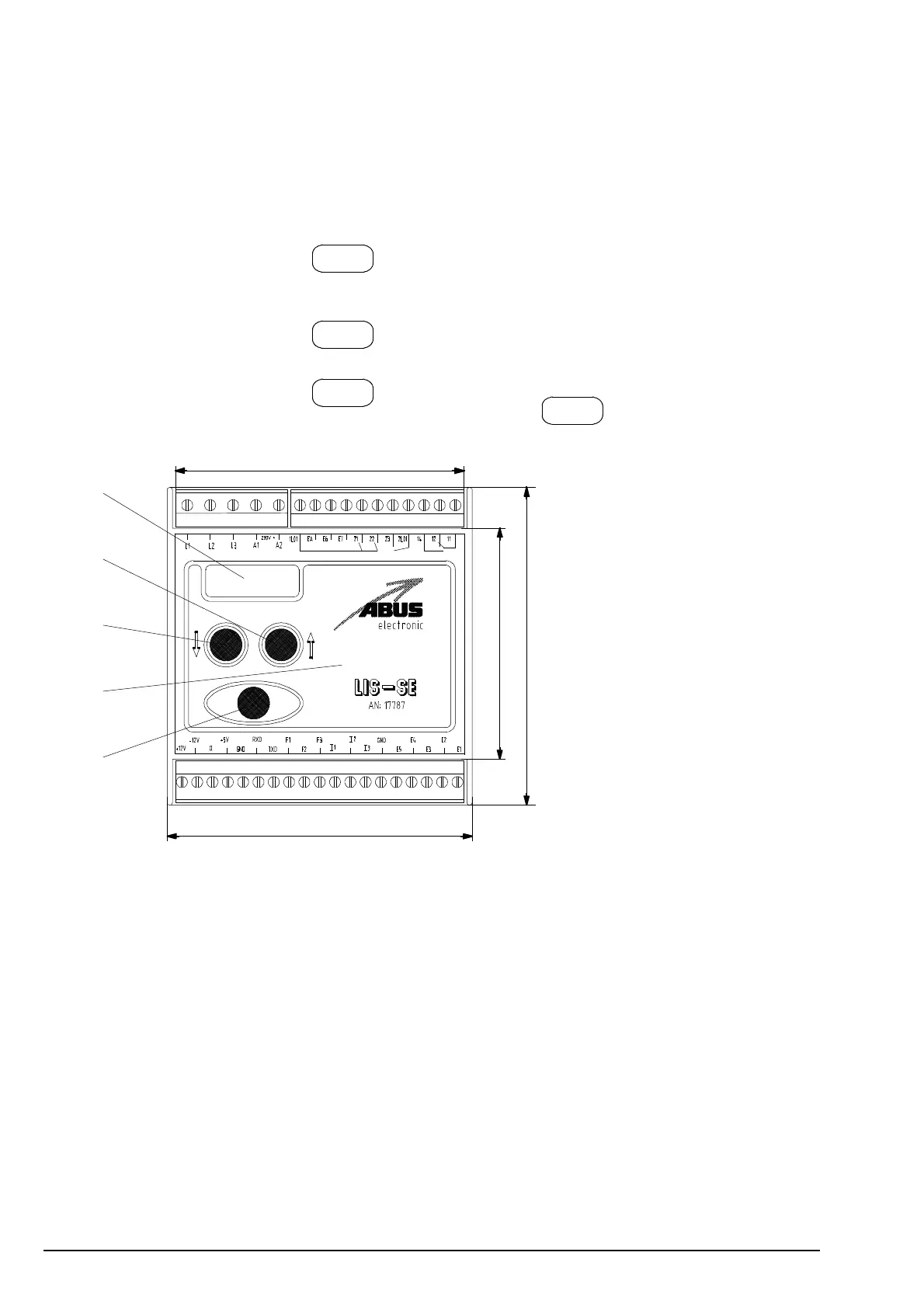

1“Enter”–key
2“up“–key
3“down”–key
4Display
5 digital operator terminal (DBE)
Height: 112
Figur 1
5.2 Basic Settings
TheLIS–SE is adjusted at the factory. Any fine adjust-
ments or new adjustments which may be necessary
can be carried out in accordance with the adj ustment
instructions in chapter 10 using a test load. Where pos-
sible, the test load should be equal to the rated load.
If the test load is lower, there w ill be a significant deterio-
ration in system accuracy. As a basic principle, the hig-
her the test load, the higher the accuracy. It is recom-
mended that a test load of at least 80 % of the rated load
should be used.
5.3 Reading the Load Population
Recorder
Menu level 1
The work required for enabling the load population re-
corder can only be performed by ABUS.
If a valid code number “2223” is entered, the values st o-
red and calculated by the load population recorder are
displayed in sequence. To return to level 1, you must
press the enter button (1, Figur 1) for a little longer.
