1.3.2.2 Toroidal tanks

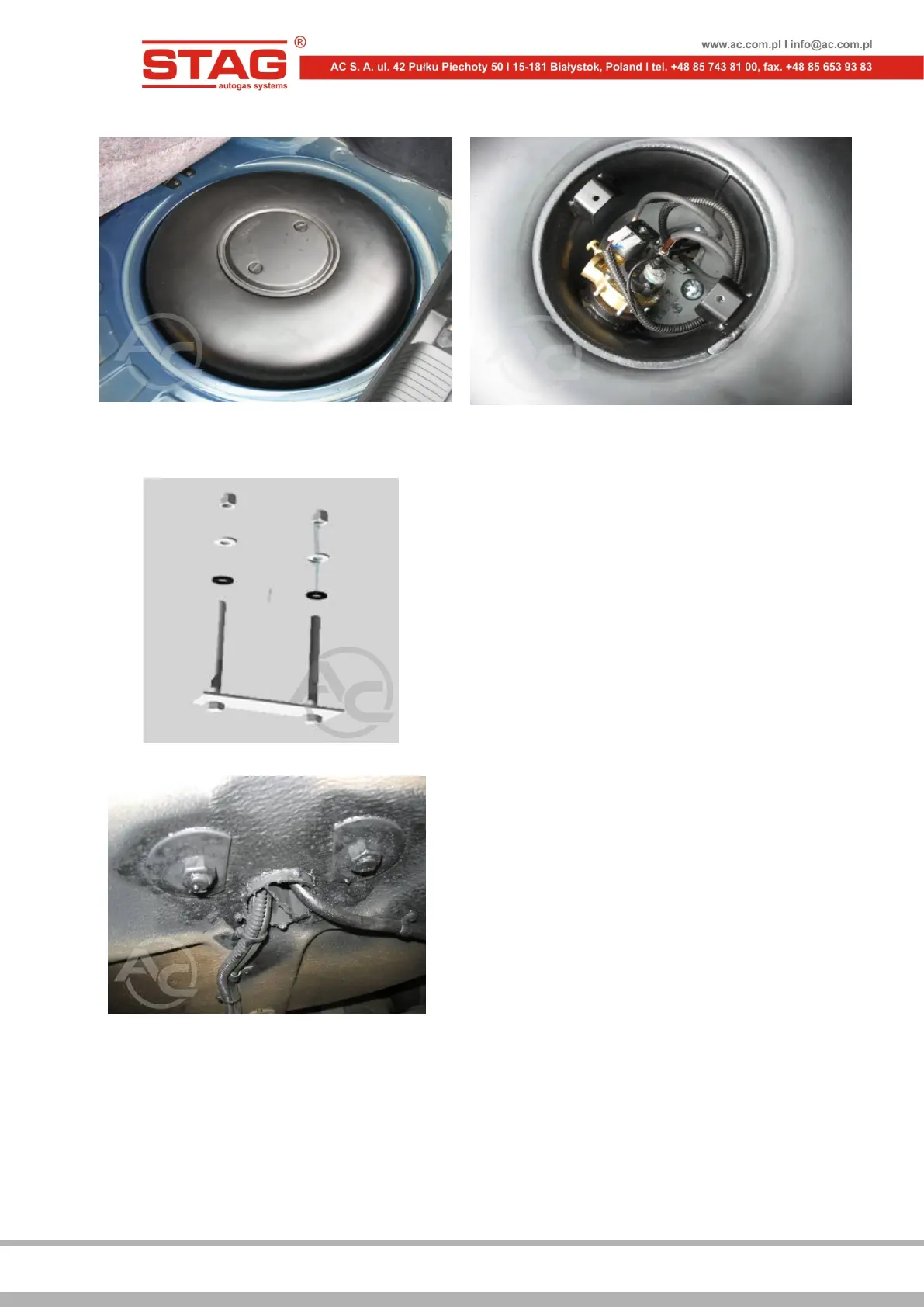

Picture 1.3.10 A fitted toroidal tank
Picture 1.3.11 A multi-valve
Picture 1.3.12 Mounting elements
Toroidal tanks should be attached to metal elements
of the vehicle using the parts provided with the tank
(
Picture 1.3.12).Orifices must be cut ou
bodywork in order to enable routing of the gas tubes,
ventilation of the gas tight housing (the inside of the
torus) as well as installation of the fitting bolts.
A
plastic support should be placed underneath the
tank. Once the tank has been installed, gas tubes are
fitted as well as the wiring harness. All mounted bolts
and screws should be covered with an anti-corrosion
substance (
Picture 1.3.13).
Picture 1.3.13 The view from underneath of the
vehicle after installation of the tank
Using factory fittings ensures appropriate strength of the elements connecting the tank with the vehicle.
