Page 41 of 54
By pointing the cursor to a given event, while viewing the oscilloscope files, the user can view the
values underneath the cursor in the Monitor window. The user can move the oscilloscope with
the slide control at the bottom of the screen or by pointing the cursor to the edge of the diagram
and holding the left mouse button.

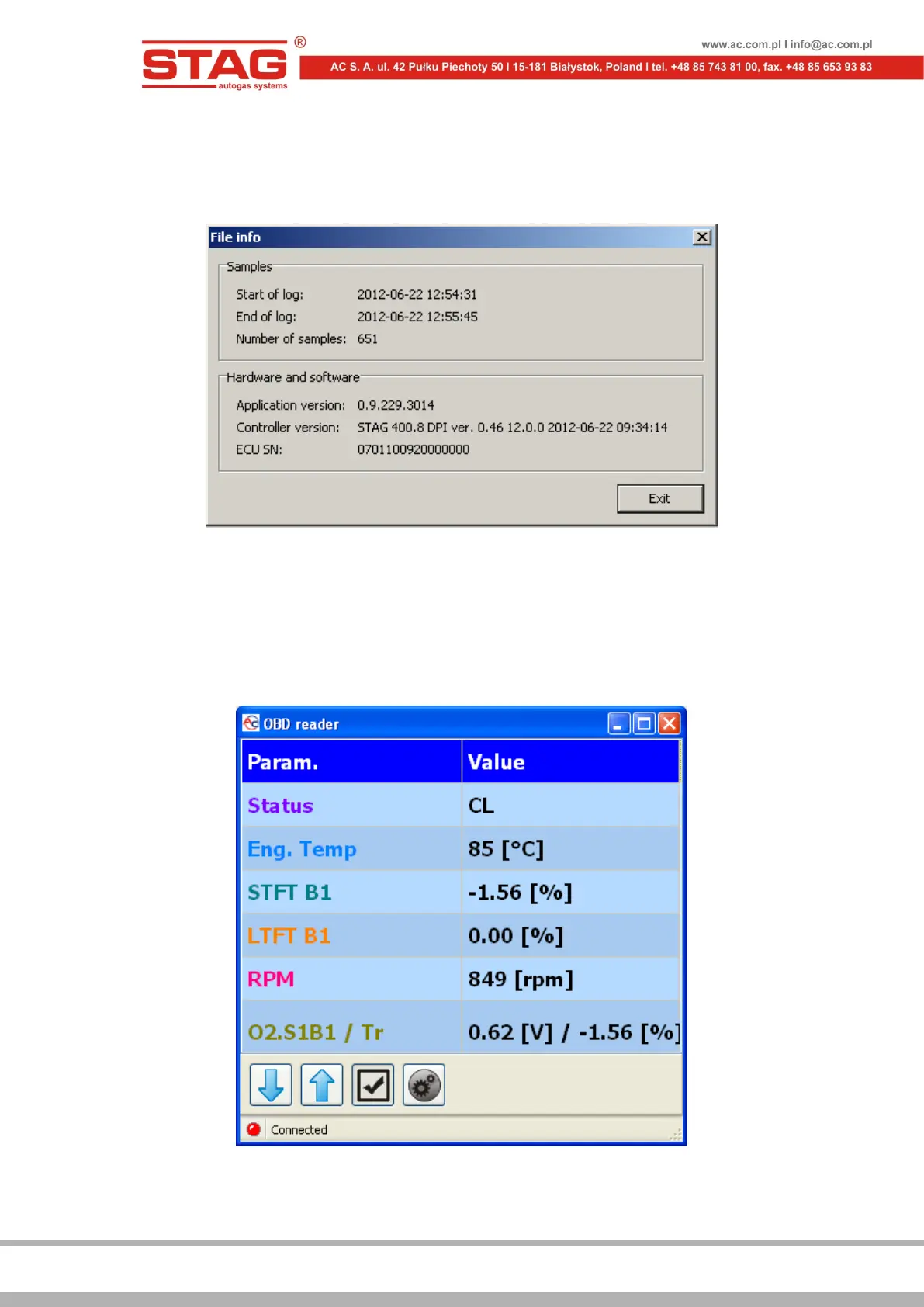

Figure 2.1.29 „File info” window
2.1.11 “OBD reader” window
The OBD reader window becomes visible by selecting Window → OBD reader from the main
menu.
Figure 2.1.30 “OBD reader” window
