1.3.1 Refuelling valves
Refuelling valves are fitted in the rear bumper or in the petrol inlet bay.

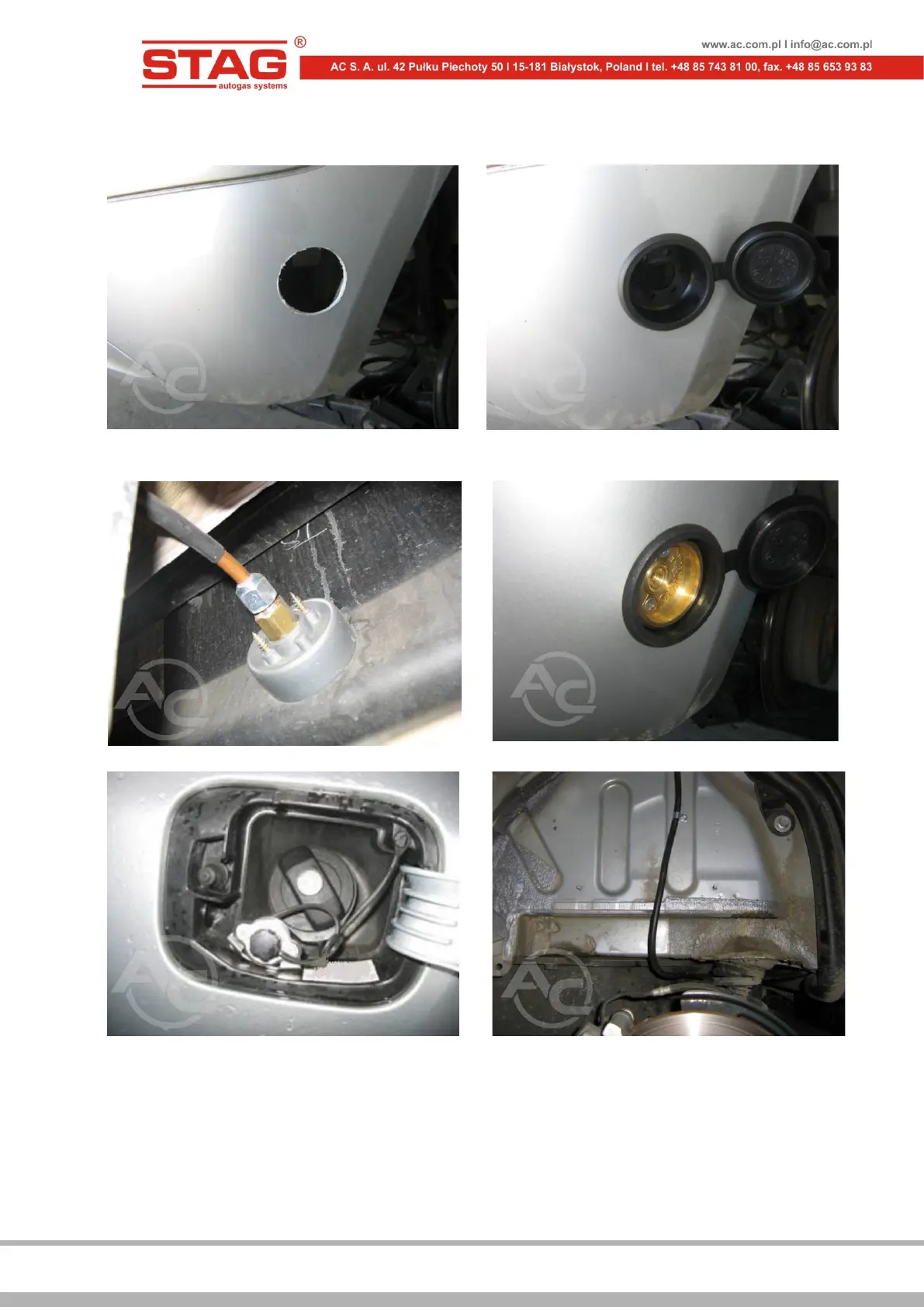

Picture 1.3.1 An opening in the bumper
Picture 1.3.2 Fitting a refuelling valve cover
Picture 1.3.3 A refuelling valve from the inside
Picture 1.3.4 A refuelling valve from the outside
Picture 1.3.5 A refuelling valve fitted next to the petrol
inlet
Picture 1.3.6 Refuelling tube clips
