o Intermediate phase – controls the rate of switching individual cylinders to LPG
fueling (time when LPG and petrol are supplied simultaneously). Modification
recommended only when problems with smooth switching occur.
− Very fast – cylinder switching occurs almost instantaneously.
− Fast, normal, slow – steps for non-linear adjustment between “Very fast” and
“Very slow” values.
− Very slow – the phase with LPG/petrol feeding overlap through 10 cylinder
working cycles.
o Pressure error delay – time, after which the controller switches to petrol, if the gas
pressure value is lower than the minimum value set in the calibration parameters
o Min. gas temp. – minimum gas temperature, below which the controller switches to
petrol
• Sensors and actuators:
o Gas injector type – settings of the installed gas injector
Once the
button has been clicked, the following window, including gas injector settings, will
be displayed:

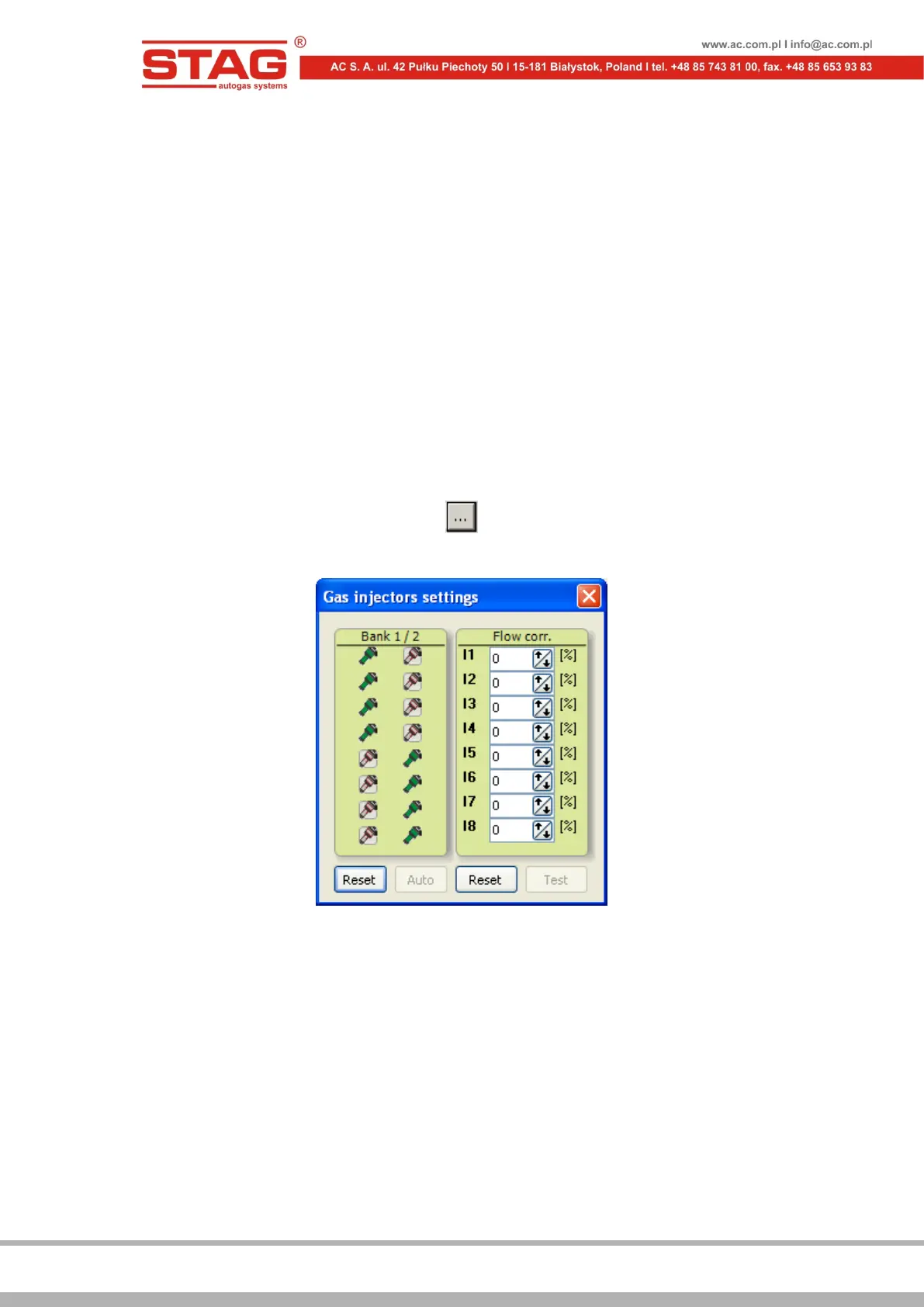

Figure 2.1.10 “Gas injectors settings” window
The window enables the user to set the correction rate individually for each section
of the injector as well as assign a given injector to a particular vehicle's Bank.
o Lambda sensor 1 – probe 1 type settings, Voltage – standard voltage probe, UEGO –
wide band UEGO probe
o Lambda sensor 2 – probe 2 type settings, Voltage – standard voltage probe, UEGO –
wide band UEGO probe
o Reducer temperature sensor – pressure regulator temperature sensor type
selection.
o Gas level indicator – gas level indicator configuration (description In section 2.1.12).
