Accu-Chek Performa Nano User Manual

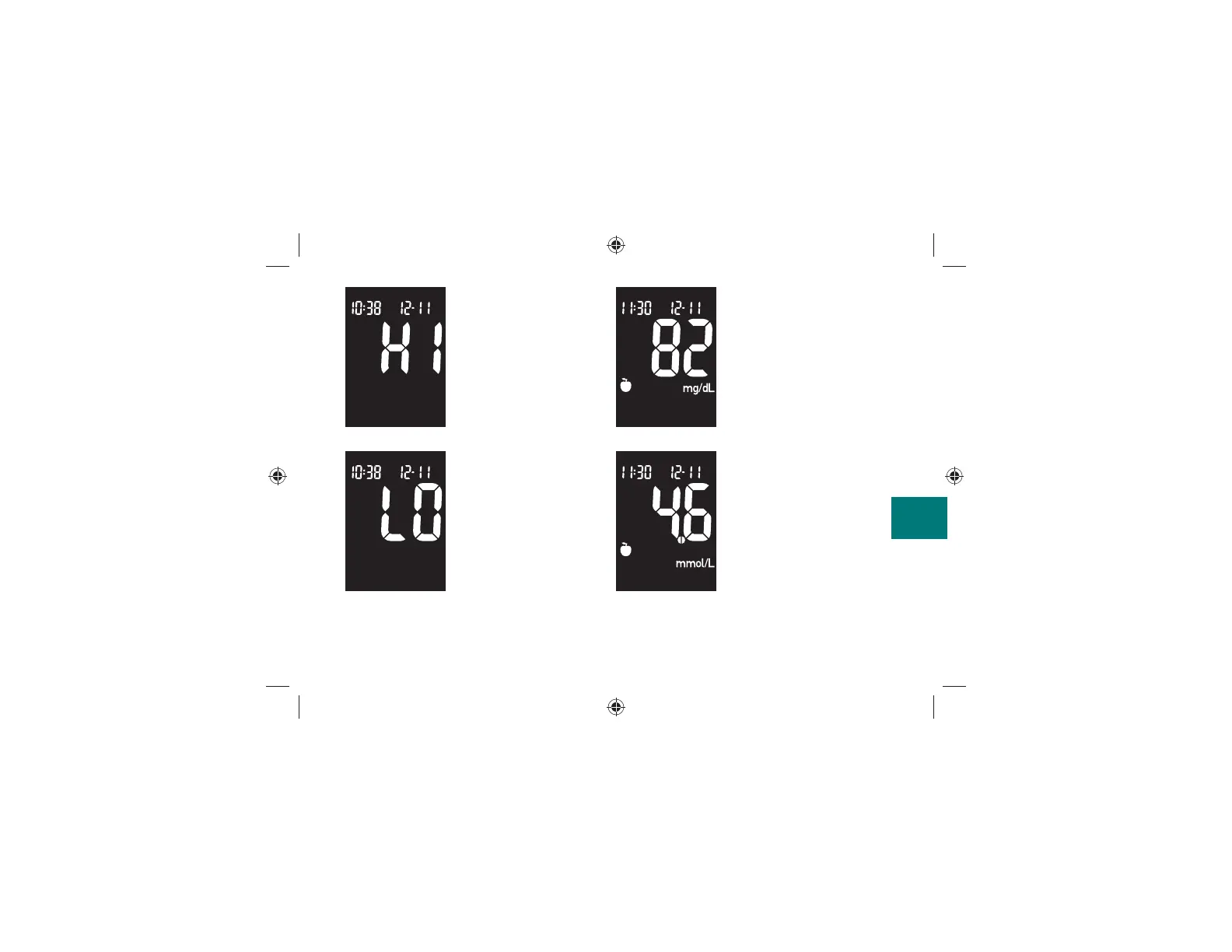

Blood glucose may be
higher than the
measuring range of
the system.
Blood glucose may be
lower than the
measuring range of
the system.
A pre-meal marker was
assigned to this test
result.
65
OR
43149_NanoPerf_24MSTR_Ins.indd 6543149_NanoPerf_24MSTR_Ins.indd 65 11/25/08 2:49:09 PM11/25/08 2:49:09 PM

Accu-Chek Performa Nano Specifications

General

Sample Size	0.6 µL
Test Time	5 seconds
Battery Life	Approximately 1000 tests
Dimensions	69 x 43 x 20 mm
Display	LCD
Memory Capacity	500 results
Automatic Power Off	90 seconds
Battery	1 x 3V lithium battery (CR2032)
Test Strip	Accu-Chek Performa
Data Transfer	Infrared (IR)
Storage Conditions	-25°C to +70°C
Measurement Range	0.6 - 33.3 mmol/L
Weight	Approx. 40 g (with battery)
Operating Conditions	6°C to 44°C, 10% to 90% RH
