Chapter 3 135
Main Module Reassembly Procedure

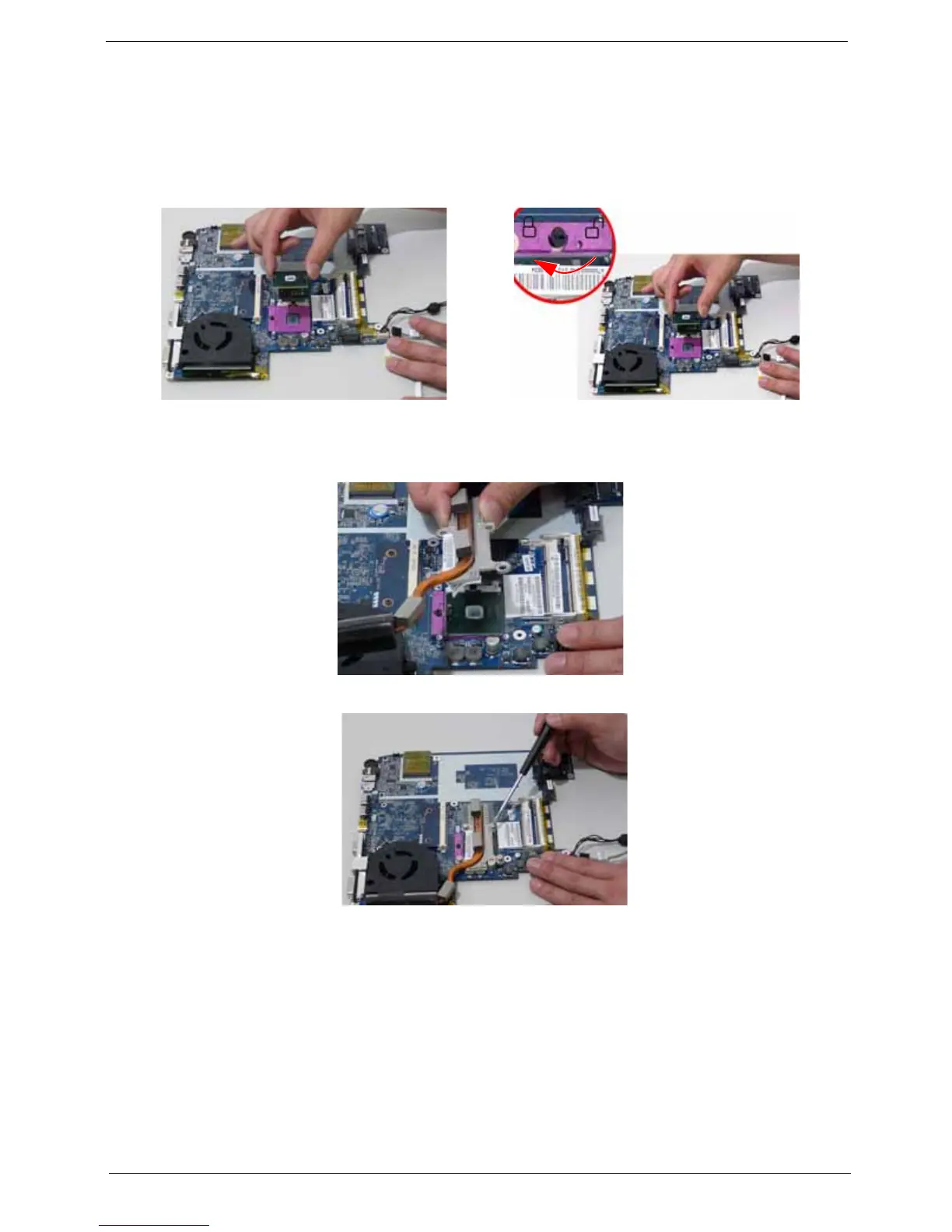

Replacing the CPU
Replacing the Thermal Module
1. Carefully turn the mainboard upside down (CPU
side up), and insert the CPU into the CPU
bracket as shown.
2. Using a plastic screw driver, lock the CPU in the
socket as shown.
1. Align and place the Thermal Module in the mounting as shown.
2. Replace the four securing screws to secure the Thermal Module.
To Next Page
