Replacing the CPU Fan Module
Replacing the HDMI Module

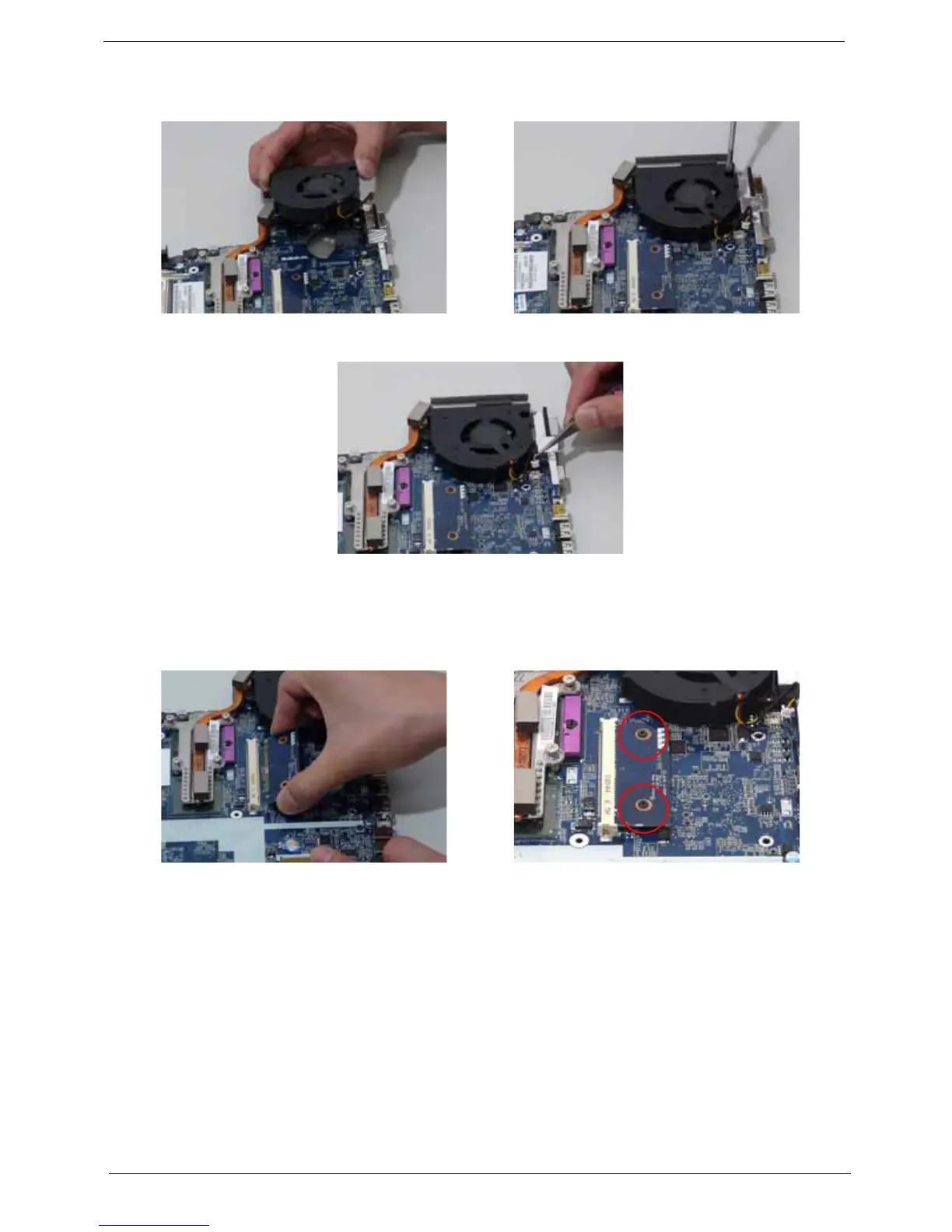

1. Align the Fan Module on the screw brackets. 2. Replace the 3 screws and secure.
3. Connect the Fan cable to the Mainboard.
1. Insert the HDMI Module as shown, and press
down to locate in place.
2. Replace the 2 screws to secure.
