138 Chapter 3

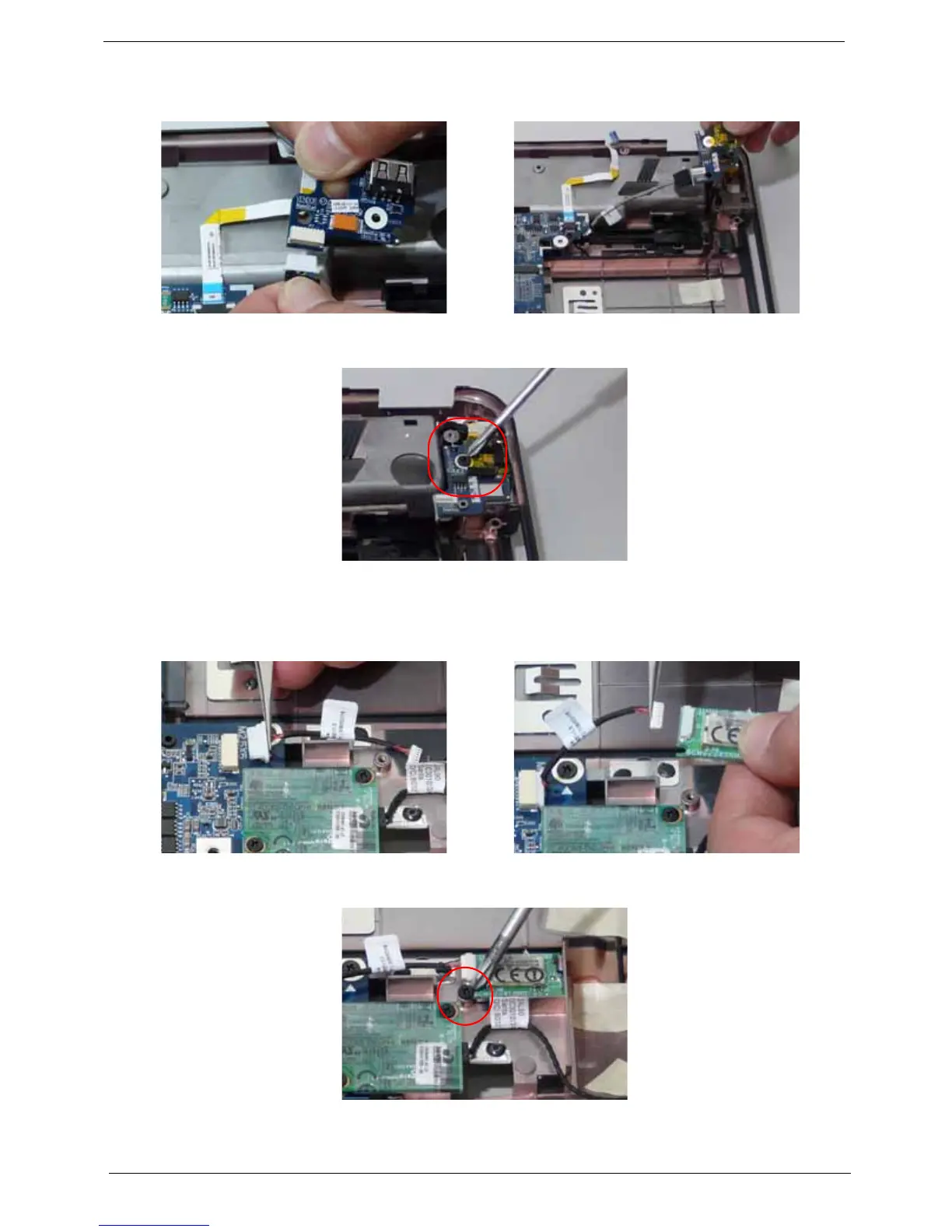

Replacing the I/O Board
Replacing the Bluetooth Board
1. Connect the FFC to the I/O Board 2. Locate the I/O over the lower cover and replace.
3. Replace the single securing screw.
1. Connect one end of the Bluetooth cable to the
mainboard as shown.
2. Connect the other end of the Bluetooth cable to
the Bluetooth Module as shown.
3. Locate the Bluetooth Module and replace the single securing screw.
