98 Chapter 3

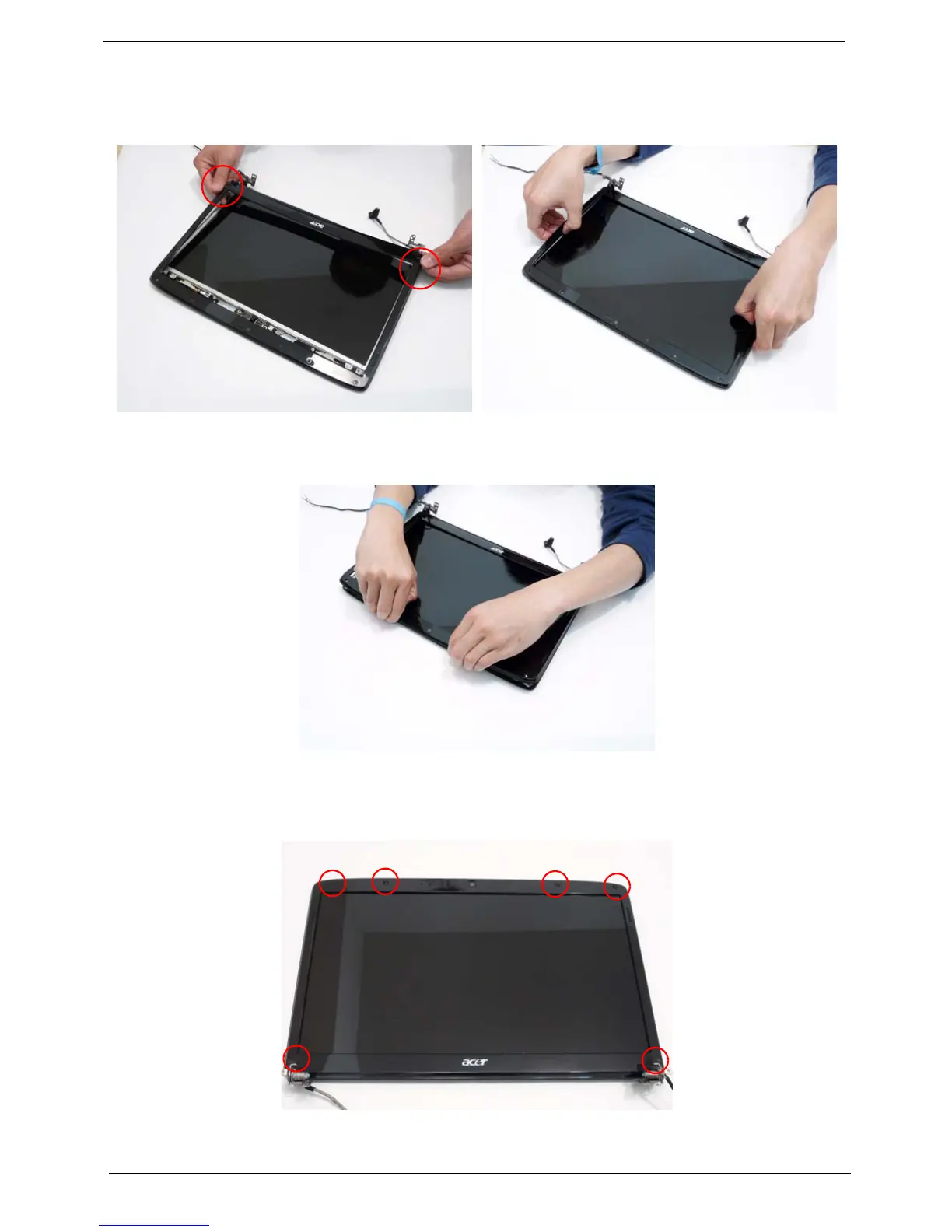

Replacing the LCD Bezel
1. Place the Bezel on the casing bottom edge first
and press in the areas marked to snap it into place.
2. Press down the sides of the bezel, working toward
the top edge.
3. Press down the top edge to complete the process.
IMPORTANT:Ensure there are no gaps between the LCD Cover and the Bezel.
4. Replace the six securing screws and screw caps on the LCD bezel.
IMPORTANT:Four of the screw caps are rubber pads. Be sure to replace them along the top edge of the
LCD panel.
