120 Chapter 3
9. Replace the six screws on the bottom of the computer.

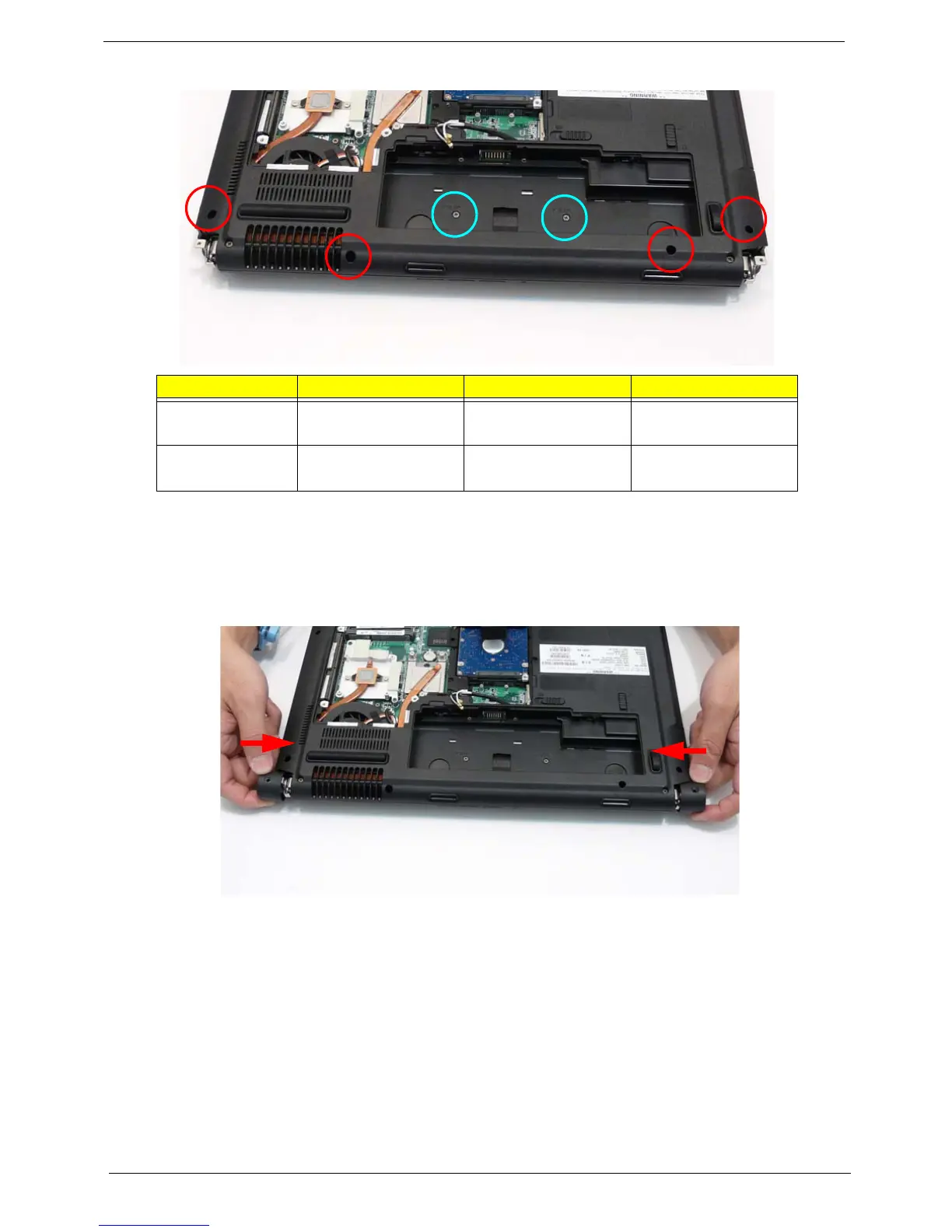

Replacing the Hinge Covers
IMPORTANT:The left and right Hinge Covers are shaped differently and marked L and R on the inside. Ensure
that the correct cover is used during reassembly.
Step Size Quantity Screw Type
Switch Cover
(red callout)
M2.5*6 6
Switch Cover
(cyan callout)
M2.5*4 2
1. Align the Hinge Covers screw hole side up and slide them onto the hinge assemblies.
To Next Page
