124 Chapter 3
• Jet Motor 7762
The following thermal compounds are approved for use:
• Eapus XR-PE
2. Remove all traces of thermal grease or pad adhesive from the heat sink using a lint-free cloth or cotton swab
and Isopropyl Alcohol, Acetone, or other approved cleaning agent.

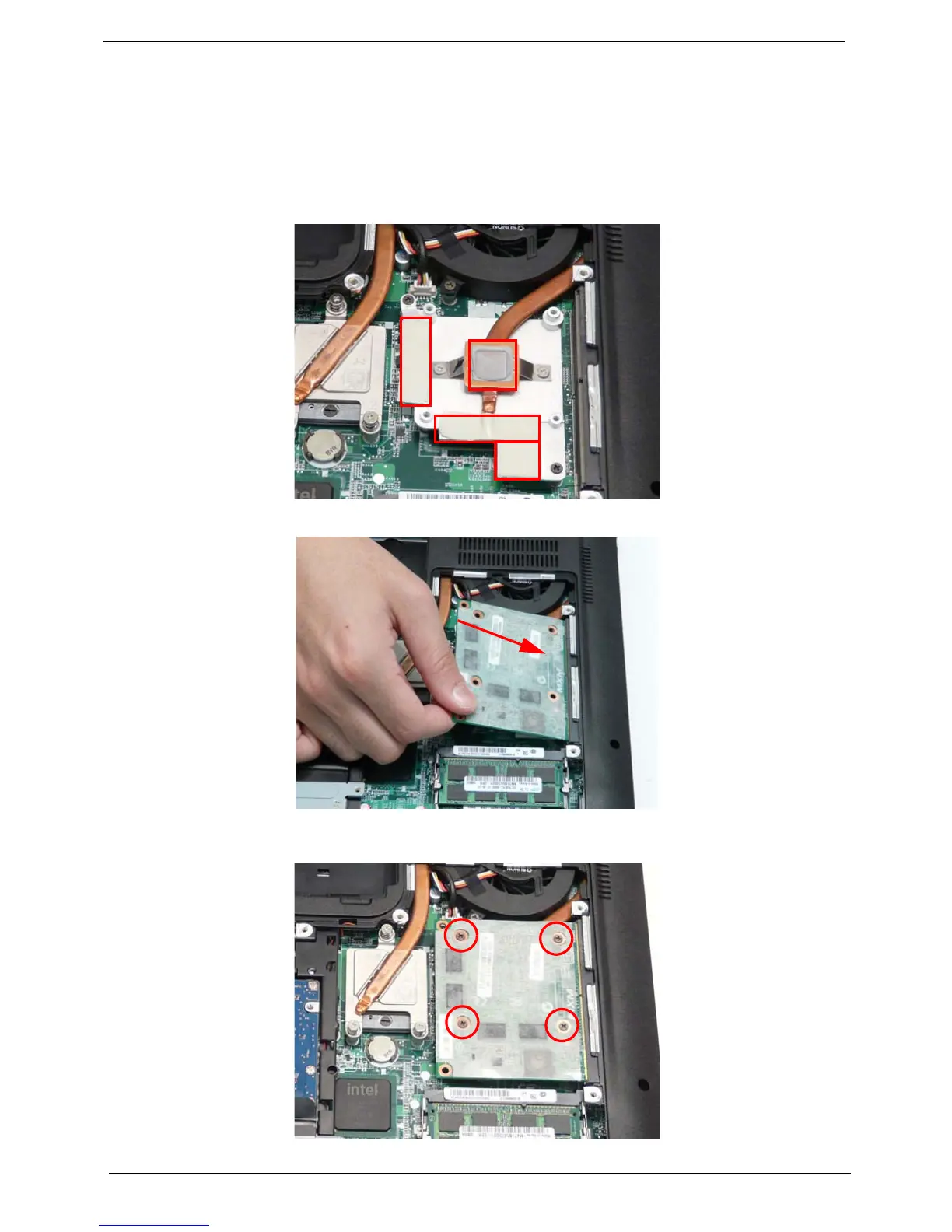

3. Apply a small amount of thermal grease or the supplied thermal pads to the locations indicated below. There is
no need to spread grease manually, the force used during the installation of the Thermal Module is sufficient.
4. Insert the MXM card into the slot.
5. Push the graphics card into place and insert the four screws to secure the graphics card to the thermal unit
underneath.
