74 Chapter 3

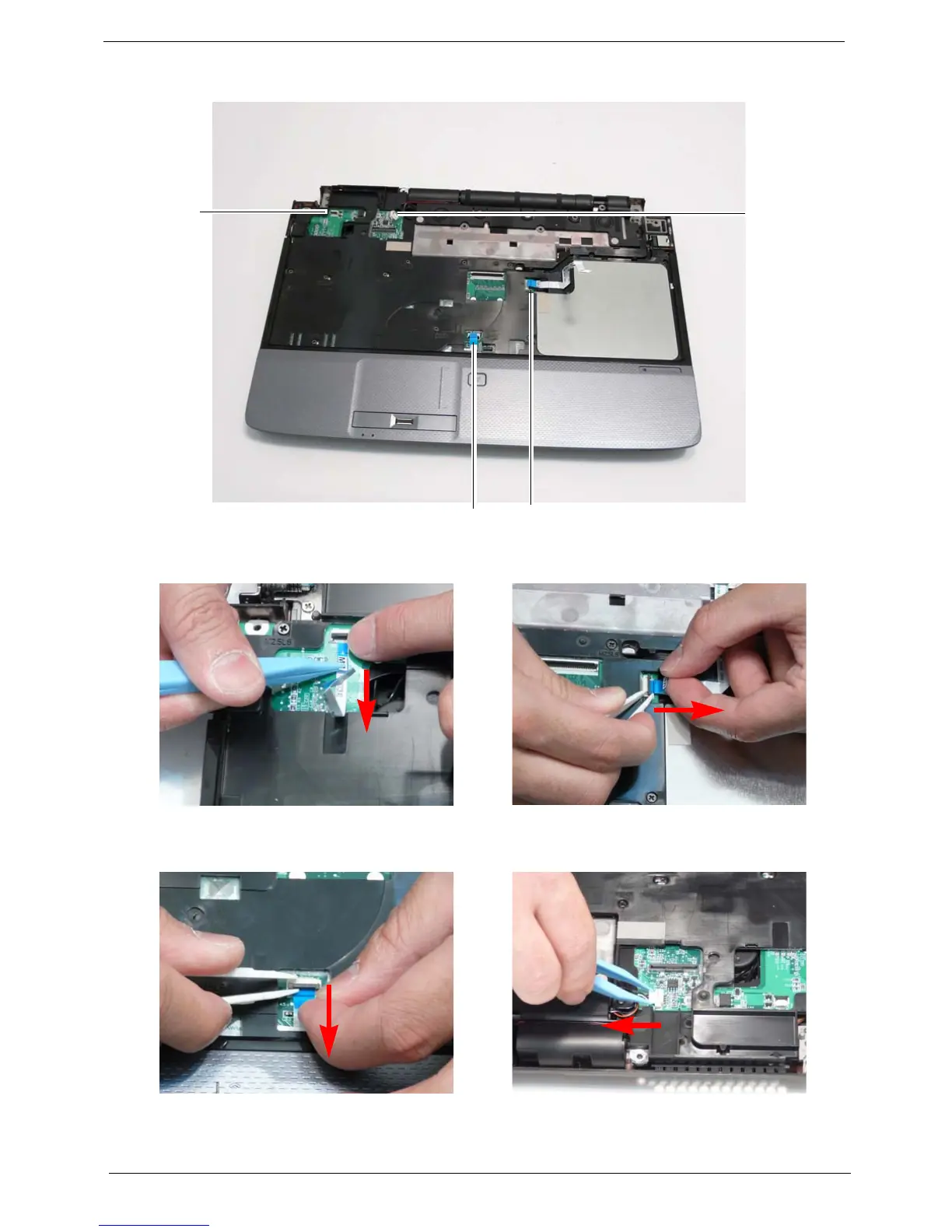

4. Turn the computer over and disconnect the four cables from the mainboard.
Unlock the connector and disconnect A as shown. Unlock the connector and disconnect B as shown.
Unlock the connector and disconnect C as shown.
Unlock the connector and disconnect D as shown.
B
D
A
C
