Removing the Thermal Module

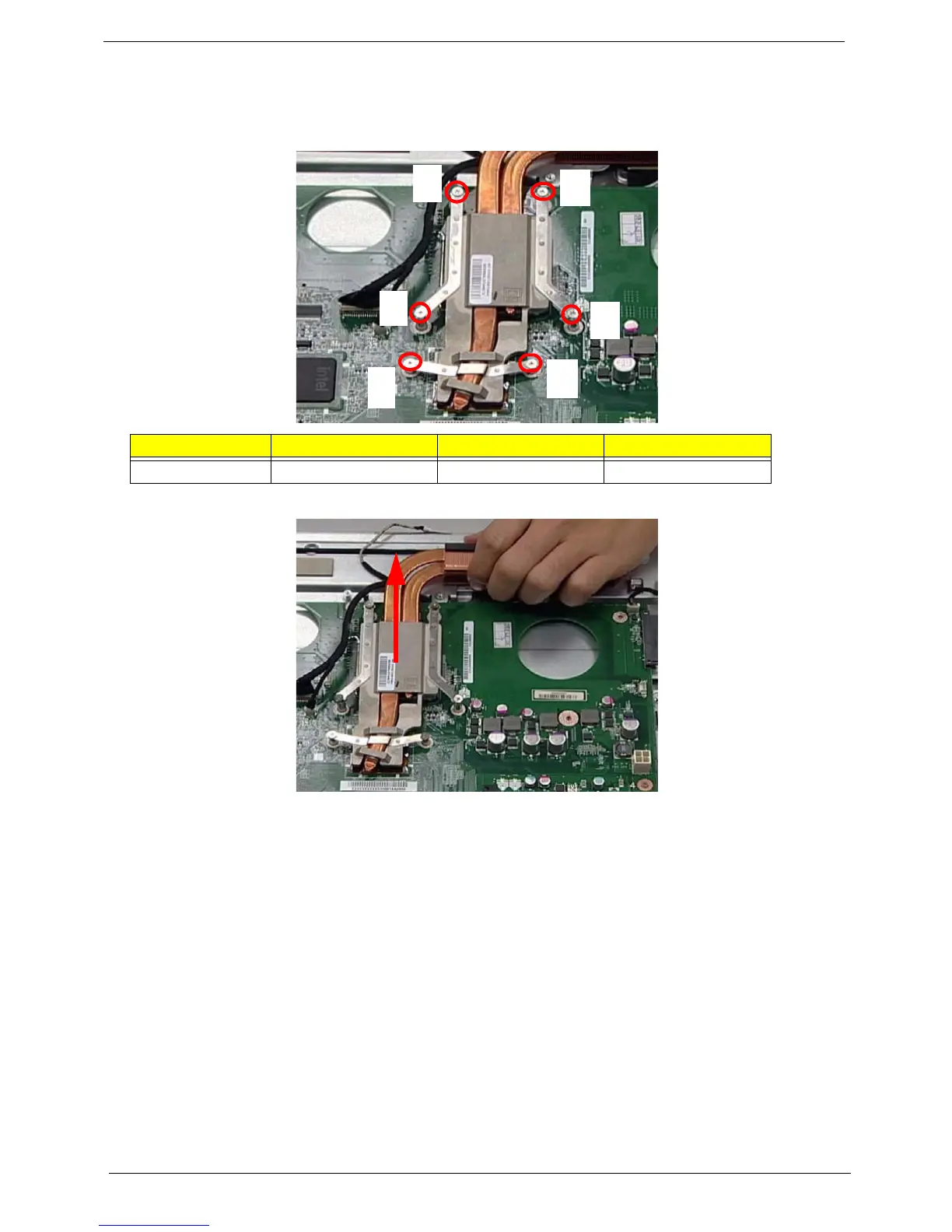

1. See “Removing the CPU Fan” on page 59.
2. Remove six (6) captive screws from the Thermal Module in ascending order from 1 to 6.
3. Lift the Thermal Module clear of the device.
Step Size Quantity Screw Type
Thermal Module 6
1
4
2
3
5
6
