64 Chapter 3
Removing the LCD Assembly
1. See “Removing the Mainboard” on page 63.

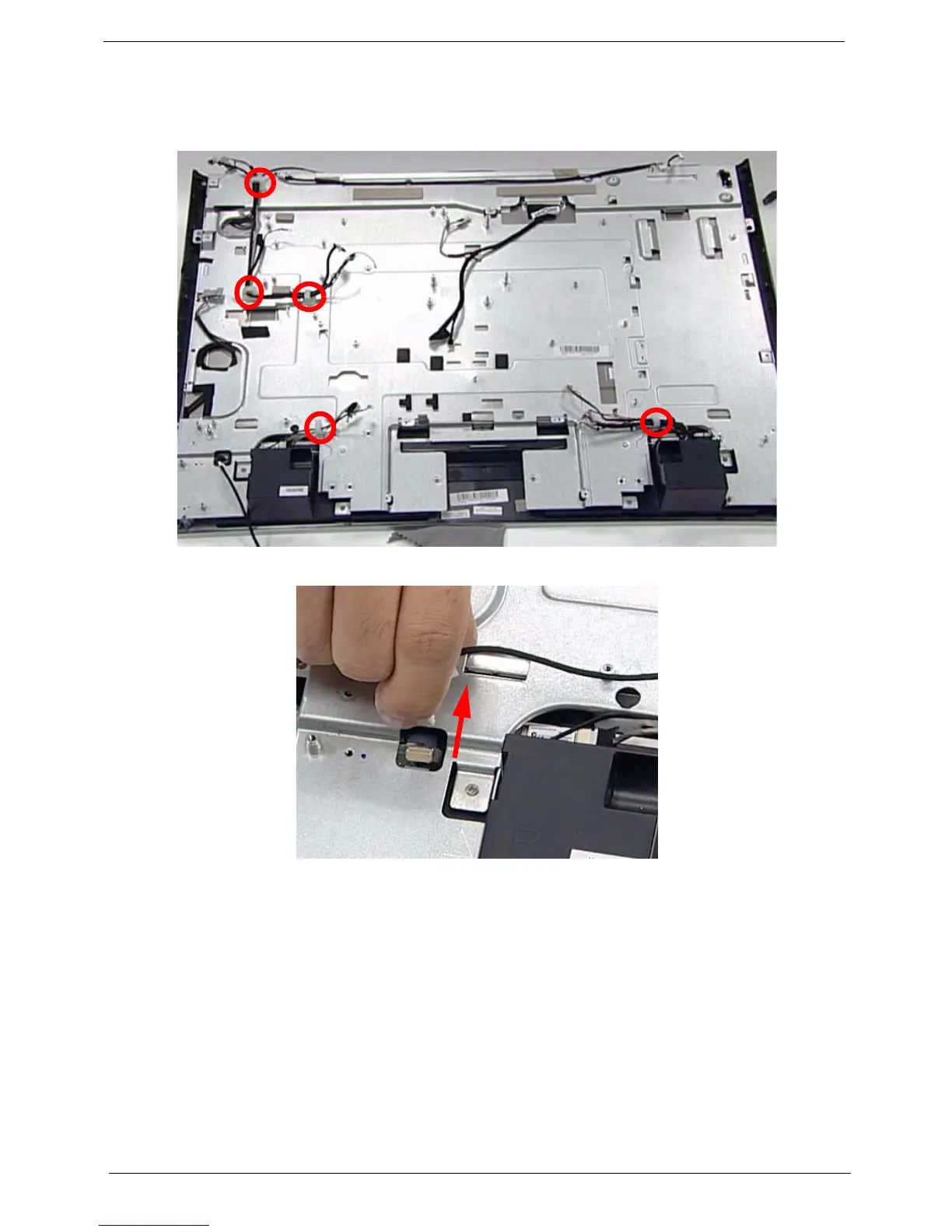

2. Release five (5) cable locks as shown.
3. Disconnect the Home Button Cable.
