Chapter 3 73

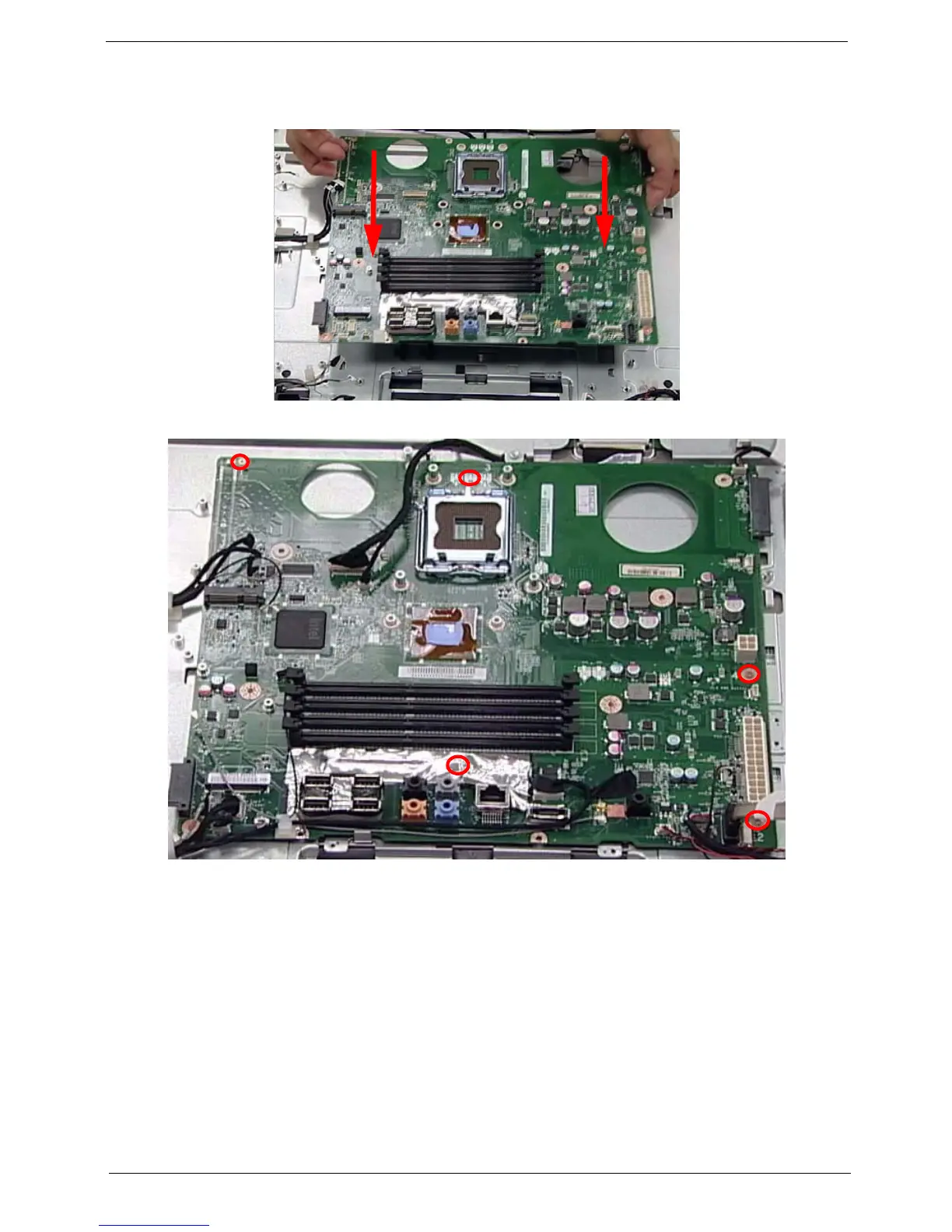

Replacing the Mainboard
1. Carefully replace the Mainboard, while lining up the six (6) guide pins underneath.
2. Secure the Mainboard in place using five (5) screws as shown.
