Acer Aspire Z5600 Series - Replacing the Mainboard Cables

74 Chapter 3
Replacing the Mainboard Cables

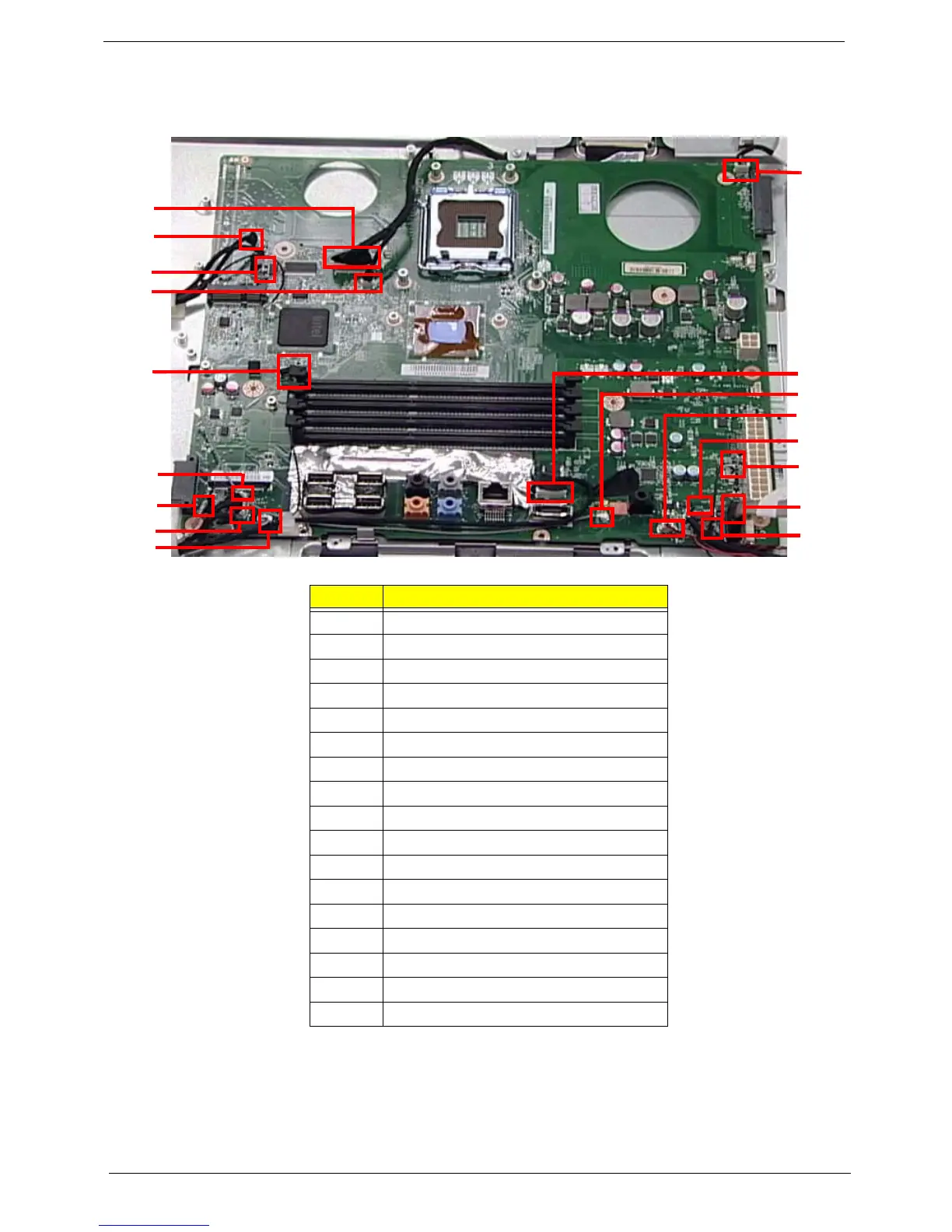

1. Secure the Mainboard by connecting seventeen (17) cables.
Item Description
1 LVDS Cable
2 CCD Cable
3 Inverter Cable
4MIC Cable
5 ODD Button Cable
6
7 Home Button Cable
8 Card Reader Cable
9 IR Cable
10 Touch Screen
11 Audio Cable
12 TV Tuner Cable
13
14 USB Cable
15 Speaker Cable
16 SATA Cable
17 LED Light
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
