Acer Extensa 2000 - Bottom View

Chapter 5 102

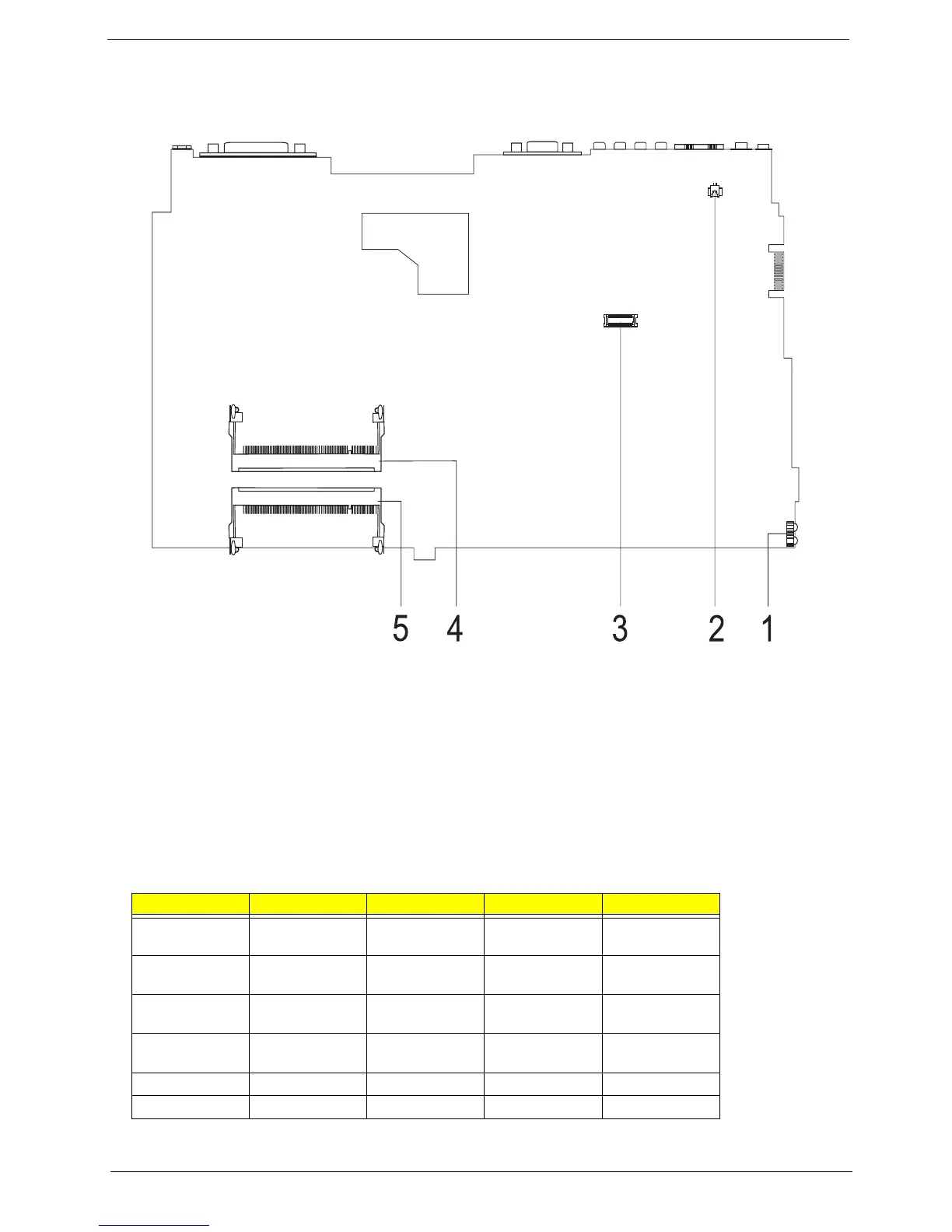

Bottom View
1 U7 FIR Port
2 RING1 Modem Cable Connector
3 MDC1 Modem Card Connector
4 DM1 DIMM Socket 1
5 DM2 DIMM Socket 2
SW1 Settings
1 2 3 4
Password
Enable
ON X X X
Password
Disable
OFF X X X
Bootblock
Enable
XONXX
Bootblock
Disable
XOFFXX
Adapter 90W X X ON X
Adapter 120W X X OFF X
