Chapter 3 70
2. See “Removing the Middle Cover” on page 54.
3. See “Removing the Keyboard” on page 61.
4. See “Removing the Fan” on page 61.
5. See “Removing the Thermal Module” on page 62.
6. See “Removing the Upper Case Assemly” on page 63.
7. See “Removing the VGA Thermal Plate” on page 66.
8. See “Removing the CPU Heatsink Plate” on page 66.
9. See “Removing the Floppy Disk Drive Module” on page 65.
10. See “Removing the Second Fan Bracket” on page 67.
11. See “Removing the ODD Module(2)” on page 67.
12. See “Removing the HDD Bracket” on page 68.
13. See “Removing the Main Board” on page 68.

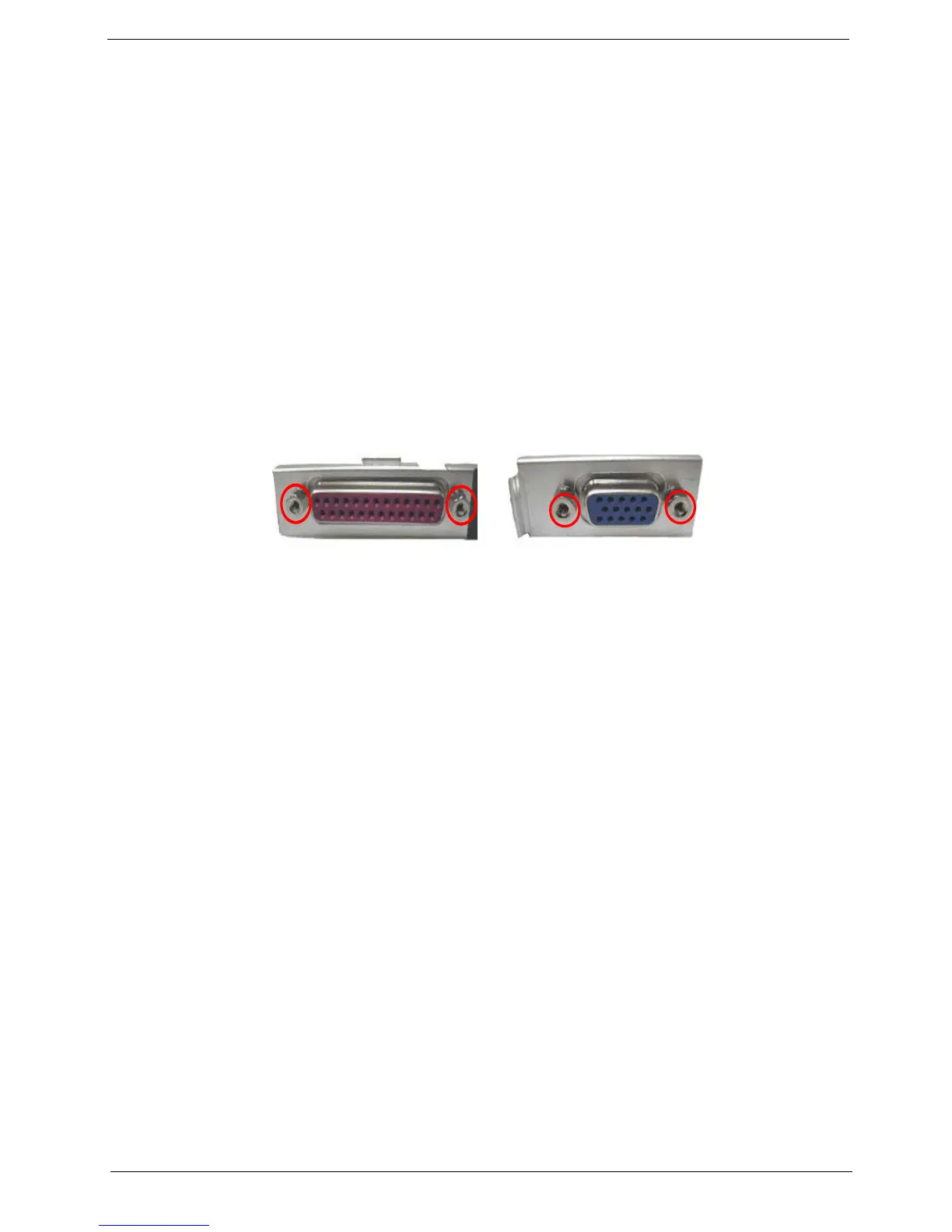

14. Remove the four hex screws to detach the I/O port bracket from the main board.
Removing the PCMCIA Slot
1. See “Removing the Battery” on page 50.
2. See “Removing the Middle Cover” on page 54.
3. See “Removing the Keyboard” on page 61.
4. See “Removing the Fan” on page 61.
5. See “Removing the Thermal Module” on page 62.
6. See “Removing the Upper Case Assemly” on page 63.
7. See “Removing the VGA Thermal Plate” on page 66.
8. See “Removing the CPU Heatsink Plate” on page 66.
9. See “Removing the Floppy Disk Drive Module” on page 65.
10. See “Removing the Second Fan Bracket” on page 67.
11. See “Removing the ODD Module(2)” on page 67.
12. See “Removing the HDD Bracket” on page 68.
13. See “Removing the Main Board” on page 68.
14. Remove the four screws that secure the PCMCIA slot, then remove the PCMCIA slot from the lower case.
