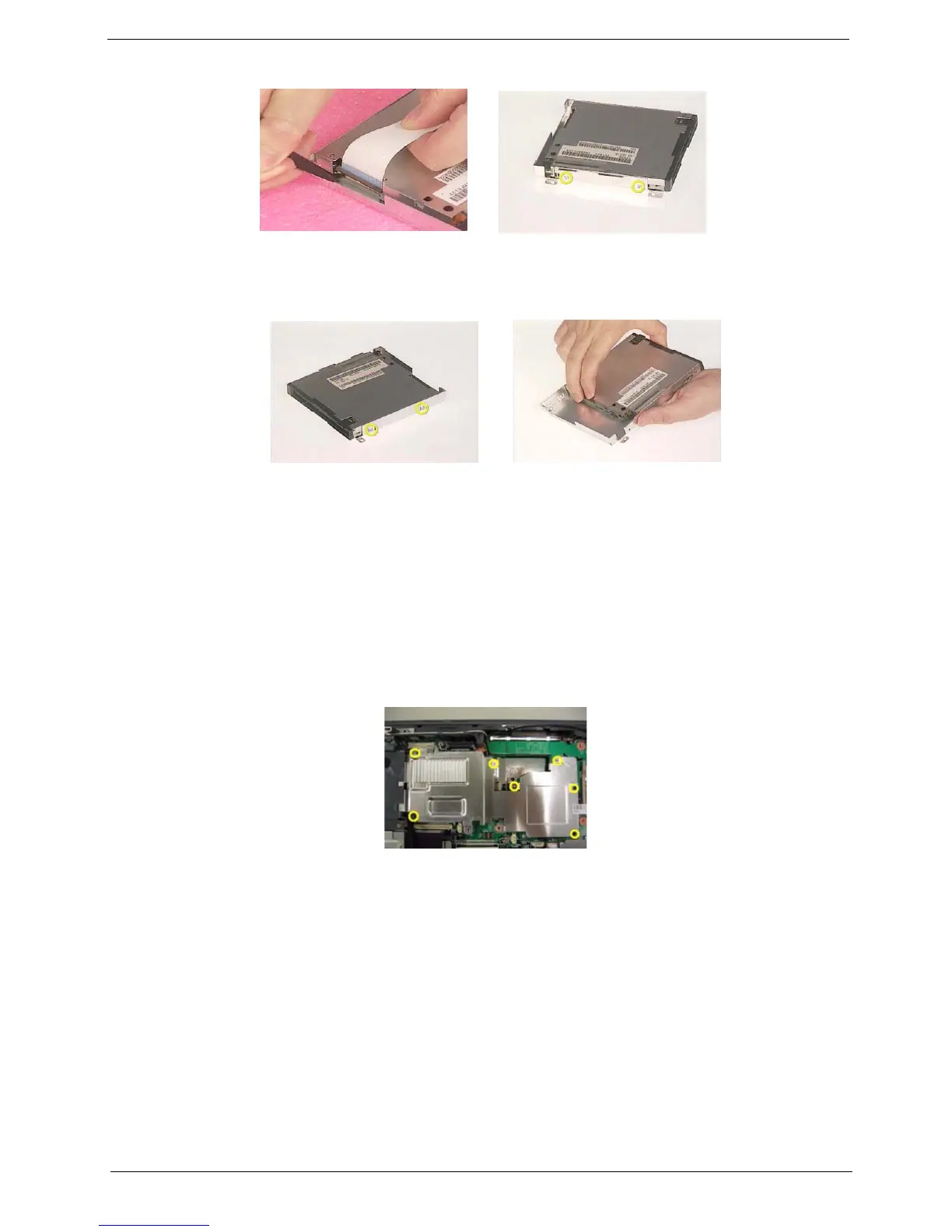

3. Remove another two screws holding the FDD bracket on the other side. Then take the FDD off the FDD
bracket.
Removing the VGA Thermal Plate
1. See “Removing the Battery” on page 50.
2. See “Removing the Middle Cover” on page 54.
3. See “Removing the Keyboard” on page 61.
4. See “Removing the Fan” on page 61.
5. See “Removing the Thermal Module” on page 62.
6. Remove the seven screws holding the VGA thermal plate then remove it.
Removing the CPU Heatsink Plate
1. See “Removing the Battery” on page 50.
2. See “Removing the Middle Cover” on page 54.
3. See “Removing the Keyboard” on page 61.
4. See “Removing the Floppy Disk Drive Module” on page 65.
5. Remove the screw that fastens the CPU heatsink plate then remove it.
