Chapter 3 60
2. See “Removing the Middle Cover” on page 54.
3. See “Removing the Launch Board” on page 54.
4. See “Removing the LCD Module” on page 55.
5. See “Removing the LCD Bezel” on page 57.
6. See “Removing the Inverter Board (15” LCD)” on page 57.
7. See “Removing the 15” TFT LCD” on page 58.

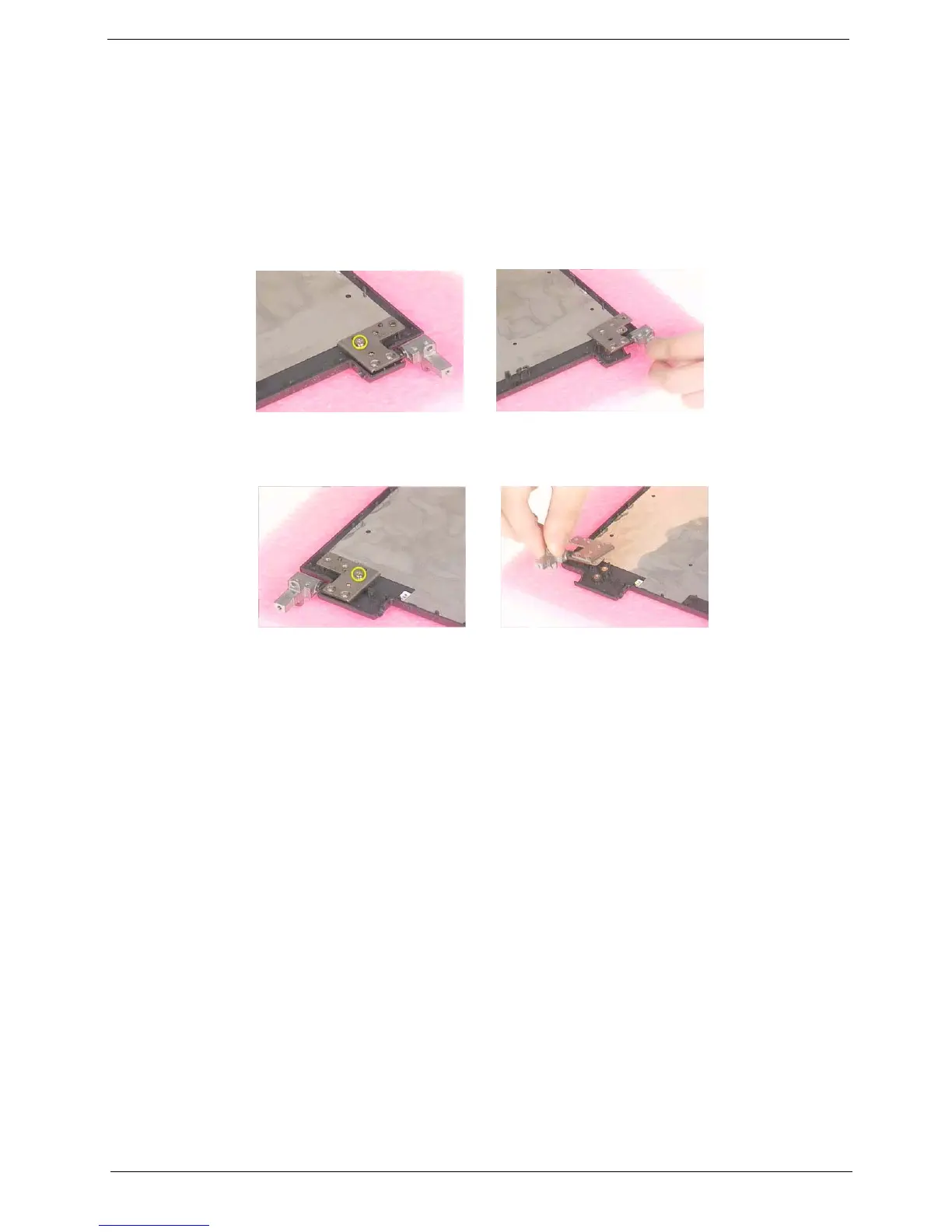

8. Remove the screw holding the right hinge, then remove the right hinge.
9. Remove the screw holding the left hinge, then remove the left hinge.
