Acer Extensa 500 - Removing the LCD Module

Chapter 3
57
Removing the LCD Module

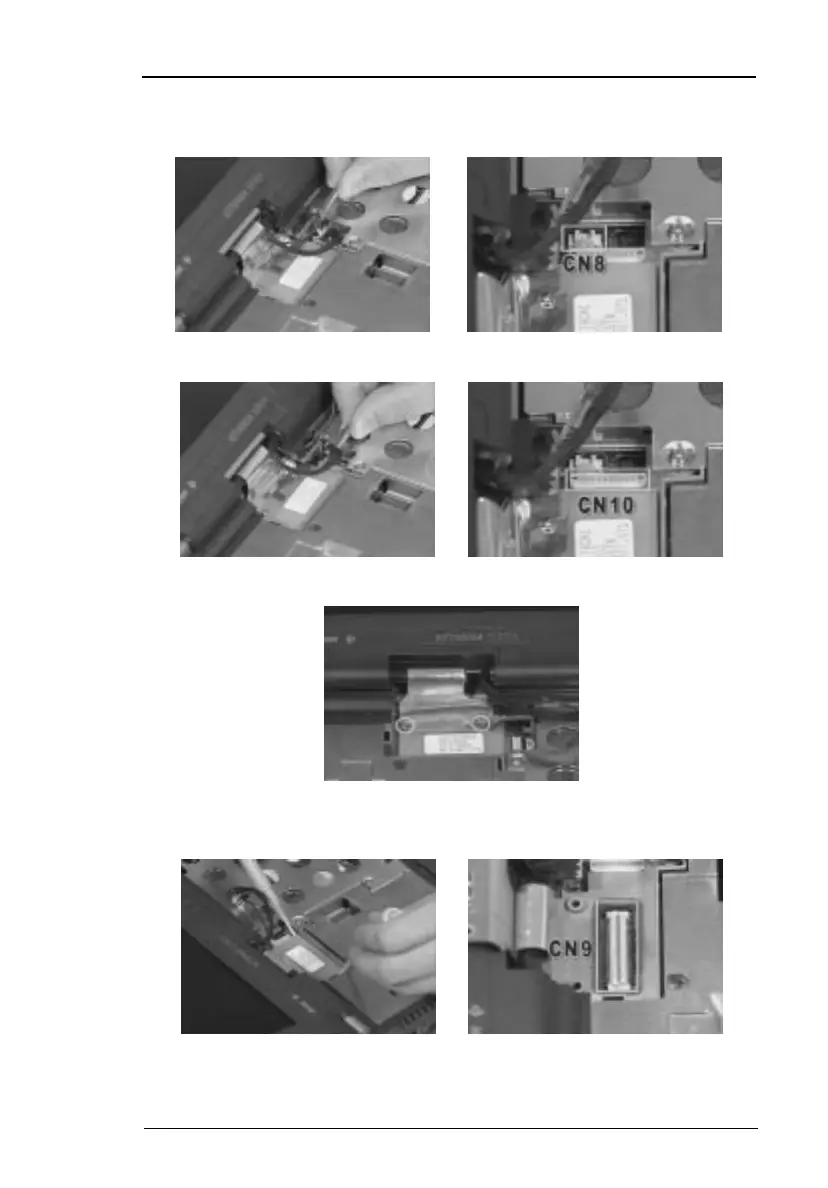

1. Disconnect the internal microphone cable at CN8 from the system board.
2. Disconnect the LED cable at CN10 from the system board.
3. Remove the two screws on the LCD FPC cable.
4. Use a plastic flatbladed screwdriver to disconnect the LCD FPC cable at
CN9 from the system board.
