Acer Extensa 500 - Removing the PCMCIA Slot; Removing the Modem Phone Jack

Chapter 3
71

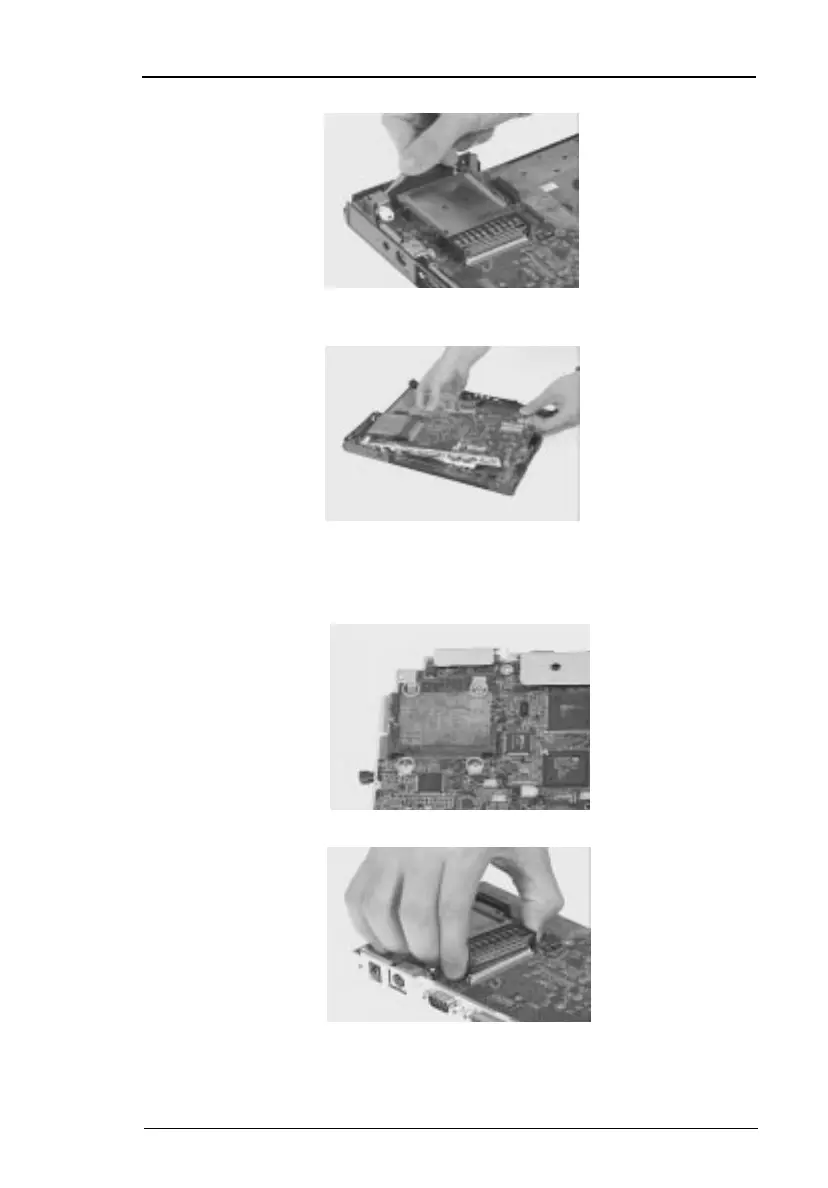

2. Remove the modem phone jack shield from the system board.
9. Remove the system board from the lower case.
Removing the PCMCIA slot
1. Remove the 4 screws around the PCMCIA slot.
2. Turn the board over, gently lift up the PCMCIA slot.
