Acer Extensa 500 - Disassembling the Main Unit; Removing the HDD & PCMCIA Heat Sink; Removing the Hard Disk Drive

Chapter 3
61
Disassembling the Main Unit
Removing the HDD & PCMCIA Heat Sink

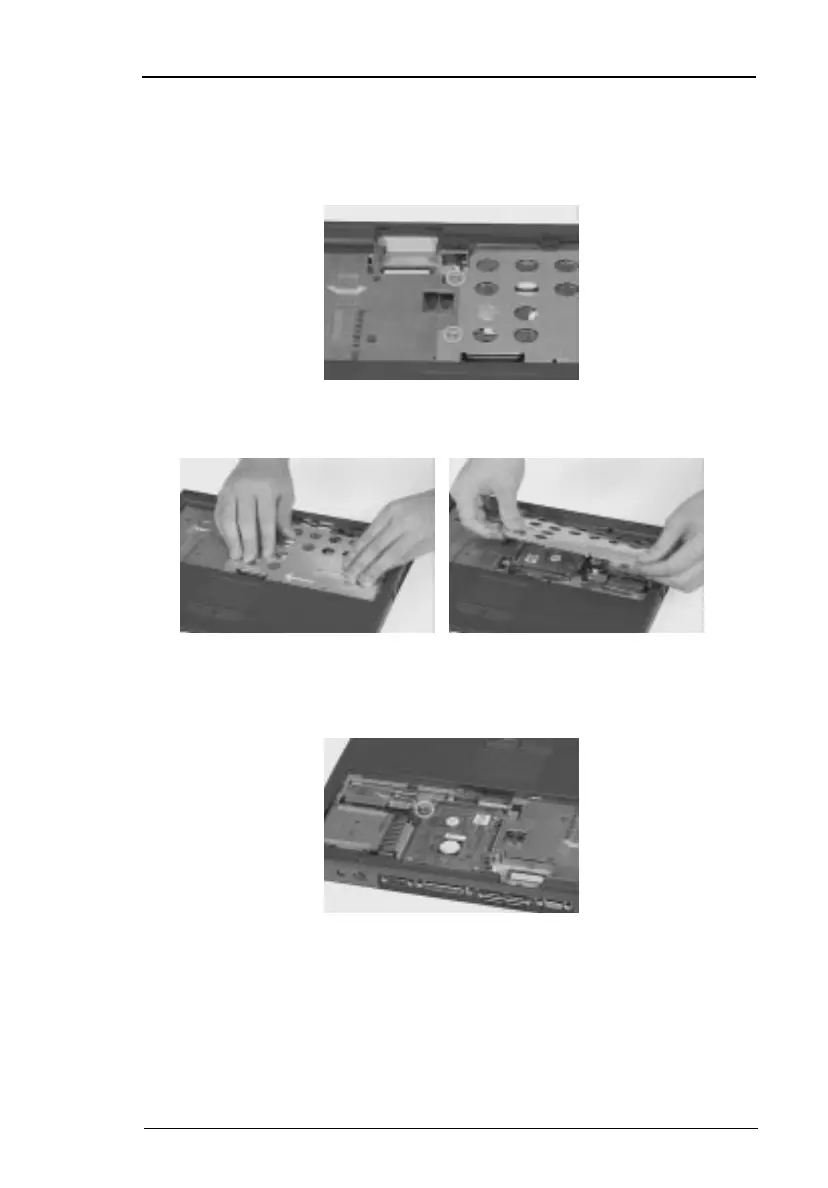

1. Remove the 2 screws from the HDD & PCMCIA heat sink.
2. Slide the HDD & PCMCIA heat sink out from the upper case, using both
hands to remove.
Removing the Hard Disk Drive
1. Remove the screw from the hard disk module.
