Machine Disassembly
Disassembling the Lower Case

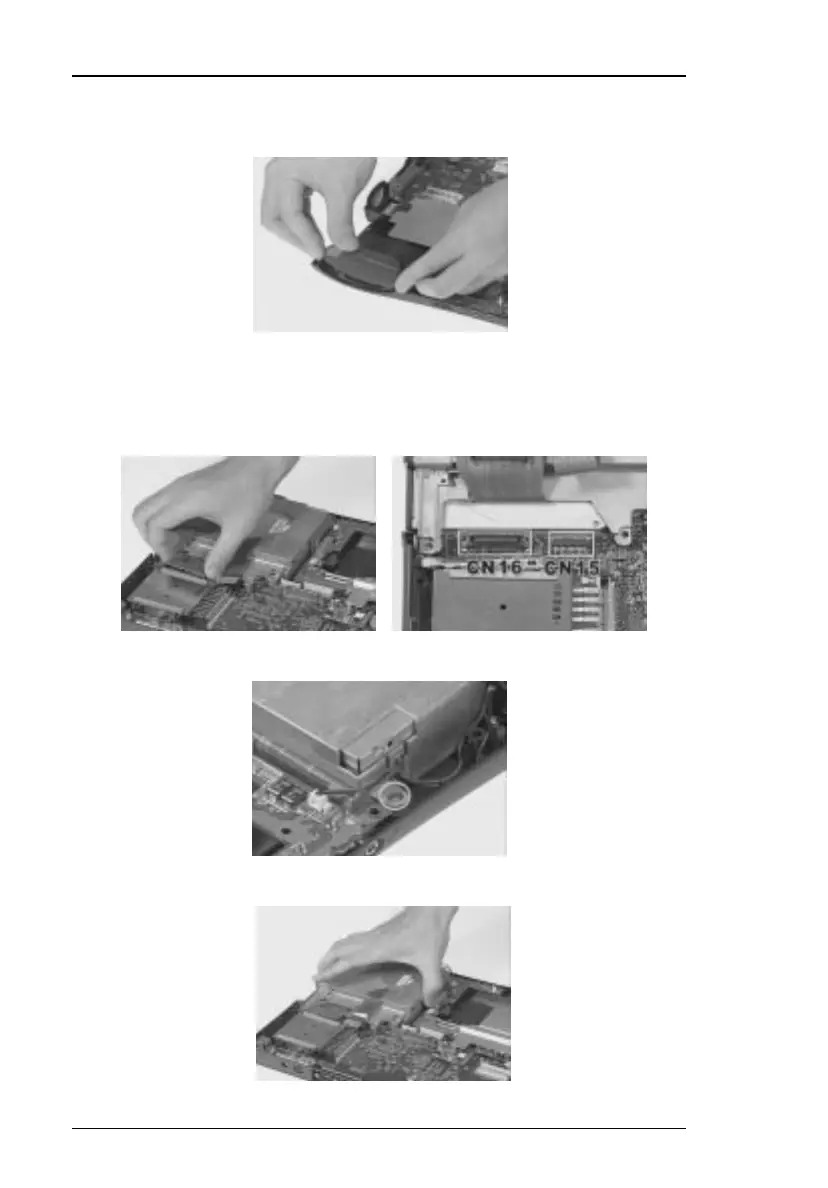

1. Gently remove the speaker nets from the lower case.
Removing the CD-ROM/Diskette Drive Module
1. Disconnect the diskette drive cable and the CD-ROM drive cable at CN15
and CN16 of the system board
2. Remove this screw from the diskette and CD-ROM/diskette drive Module.
3. Gently pull up the CD-ROM/diskette drive module from the lower case.
