Acer Extensa 500 - Page 59

Chapter 3
59

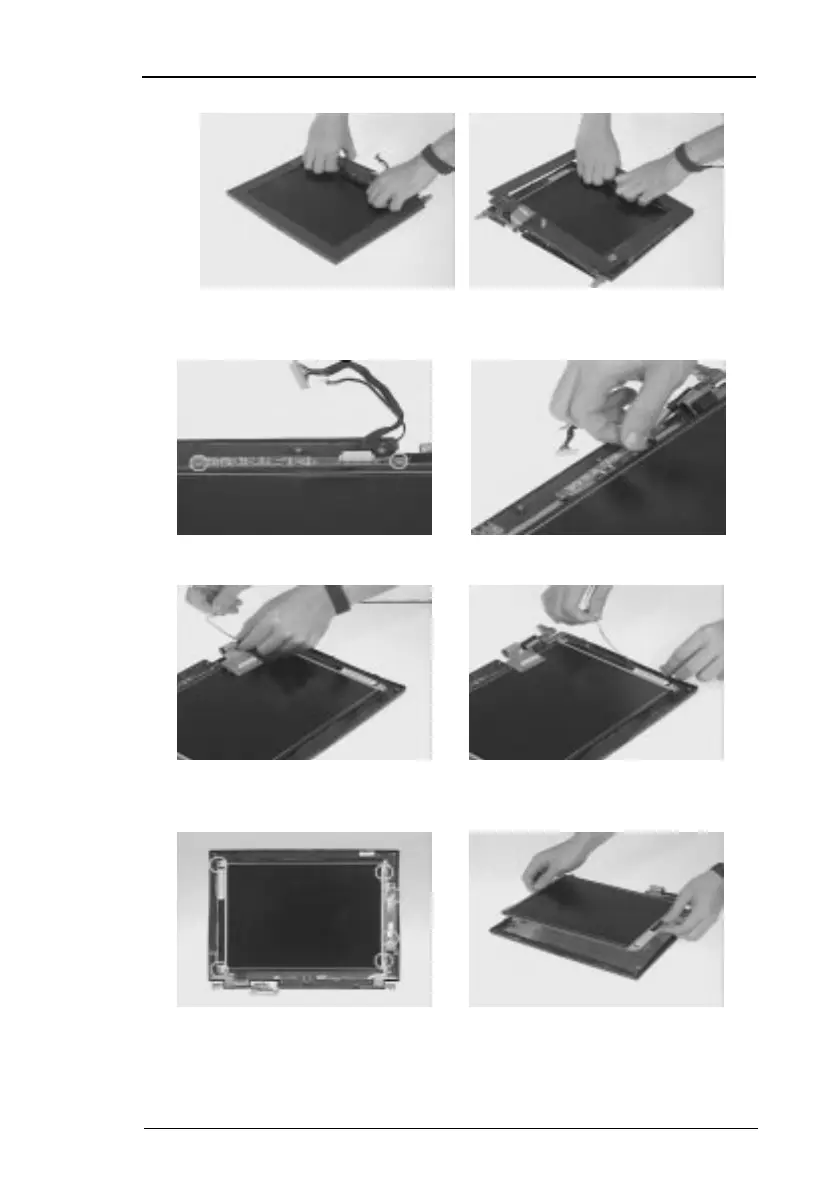

3. Carefully, pull out the display bezel from the inside out.
4. Remove the two screws from the LED board, then lift the LED board from
the display panel.
5. Carefully remove the internal microphone cable from the display panel.
6. Remove the six screws as shown below to separate the LCD and the LCD
inverter board.
