94 Chapter 3
Removing the LCD Bezel
1. See “Removing the Battery Pack” on page 56.
2. See “Removing the SD dummy card” on page 57.
3. See “Removing the PC and ExpressCard dummy cards” on page 58.
4. See “Removing the Lower Cover” on page 59.
5. See “Removing the WLAN Board Modules” on page 61.
6. See “Removing the Middle Cover” on page 68.
7. See “Removing the Keyboard” on page 71.
8. See “Removing the LCD Module” on page 76.

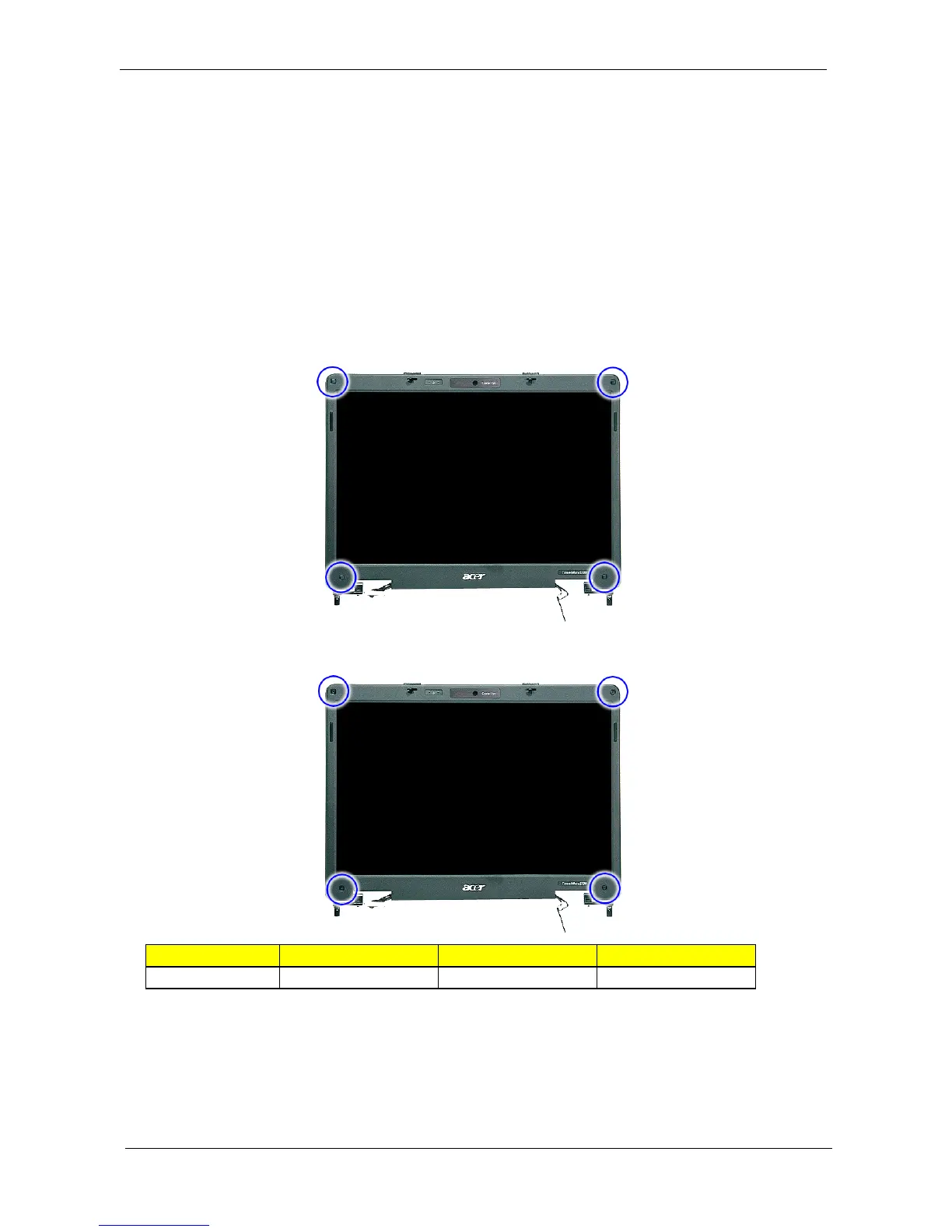

9. Remove the four screw covers from the LCD bezel.
10. Remove the four screws (C) on the LCD module as shown.
Step Size (Quantity) Color Torque
1~4 M2.5 x L6 (4) Black 3.0 kgf-cm
