Acer Extensa 5630 - Removing the Heatsink Fan Module; Removing the Speaker Module

72 Chapter 3

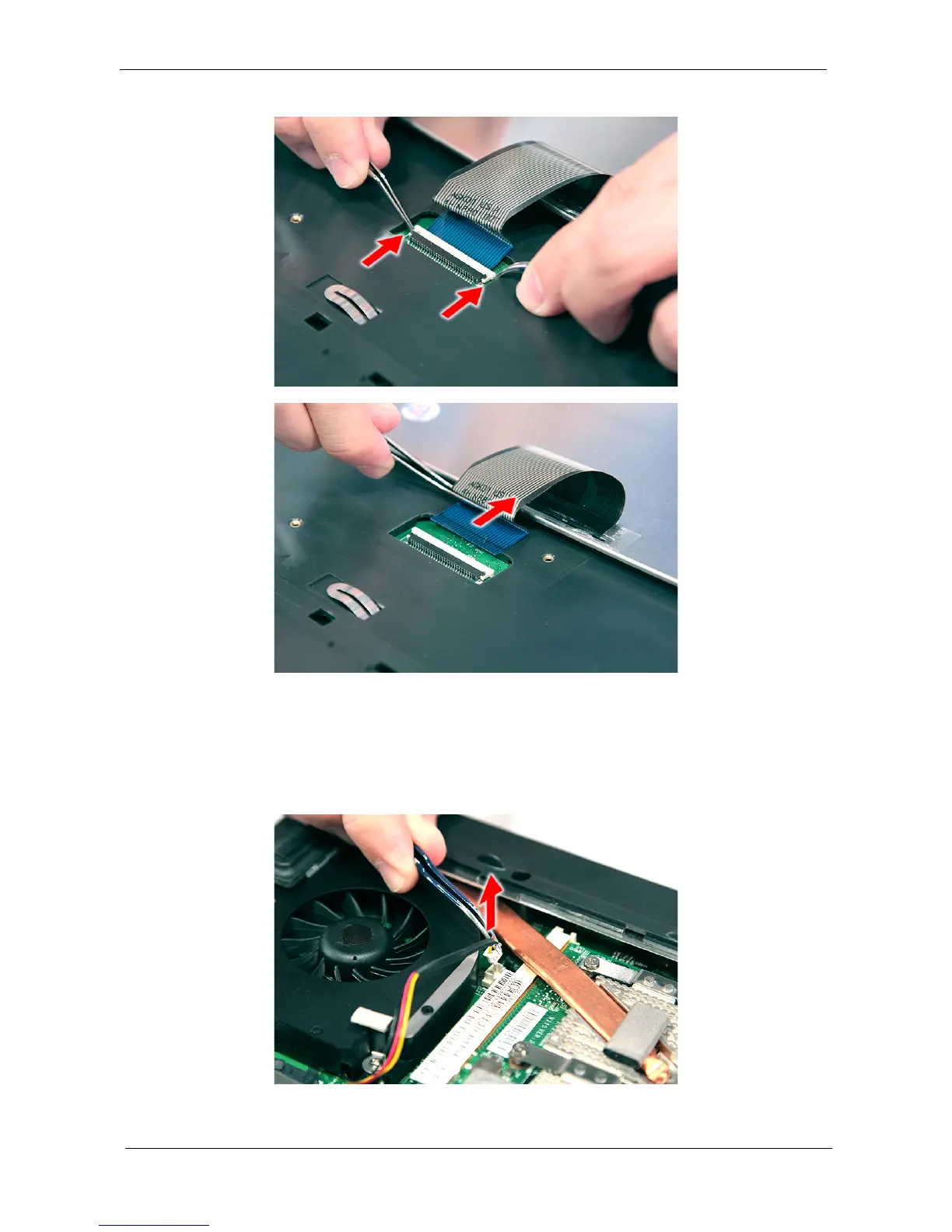

5. Disconnect the keyboard cable from the main board to remove the keyboard.
Removing the Heatsink Fan Module
1. See “Removing the Battery Pack” on page 56.
2. See “Removing the Lower Cover” on page 59.
3. Disconnect the heat sink fan connector from the main board.
