Chapter 3 63

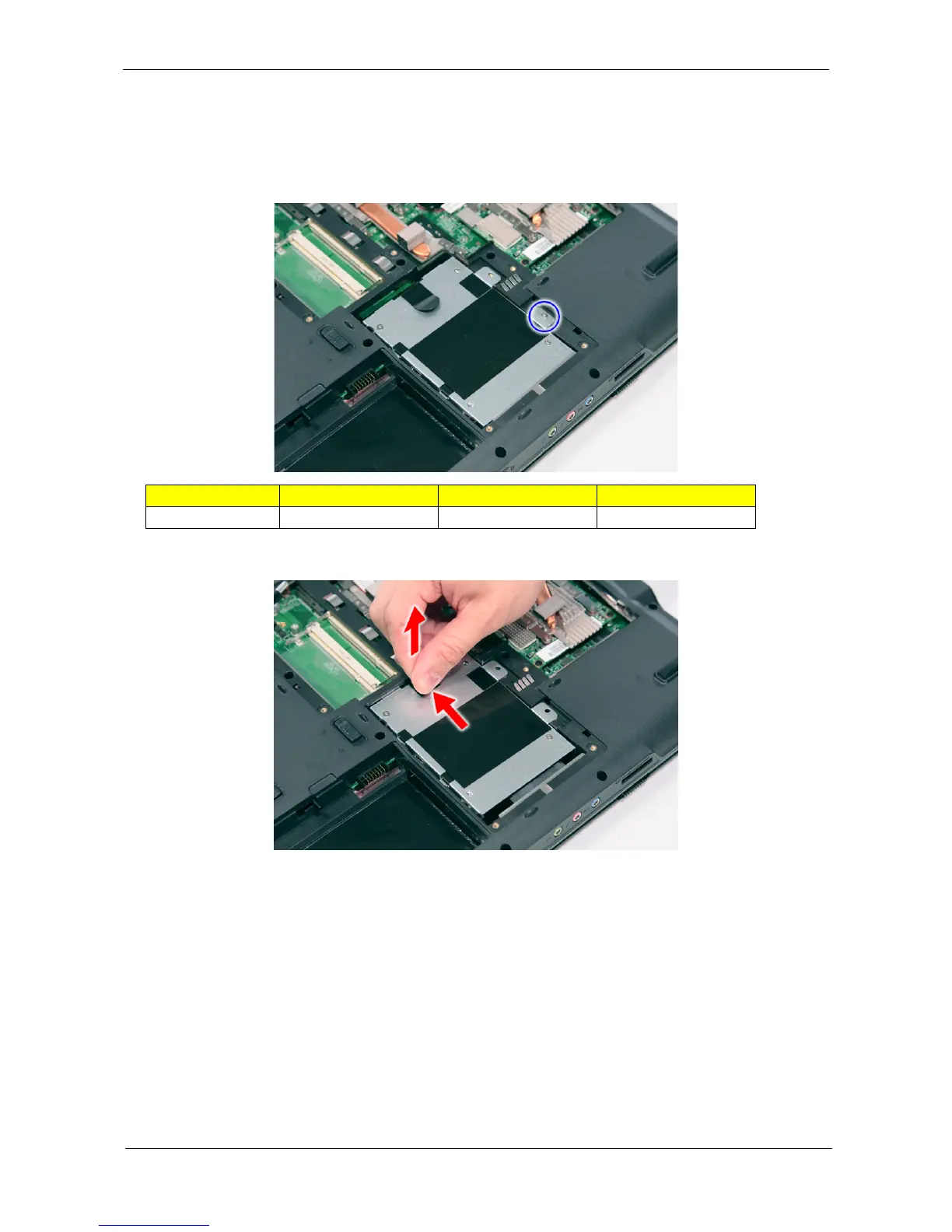

Removing the Hard Disk Drive Module
1. See “Removing the Battery Pack” on page 56.
2. See “Removing the Lower Cover” on page 59.
3. Remove the one screw (B) securing the hard disk drive module.
4. Using the plastic tab, slide the hard disk drive module away from the connector; lift up the hard disk
module to remove from the bay.
NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it.
Step Size (Quantity) Color Torque
1 M2 x L4 (1) Silver 1.6 kgf-cm
