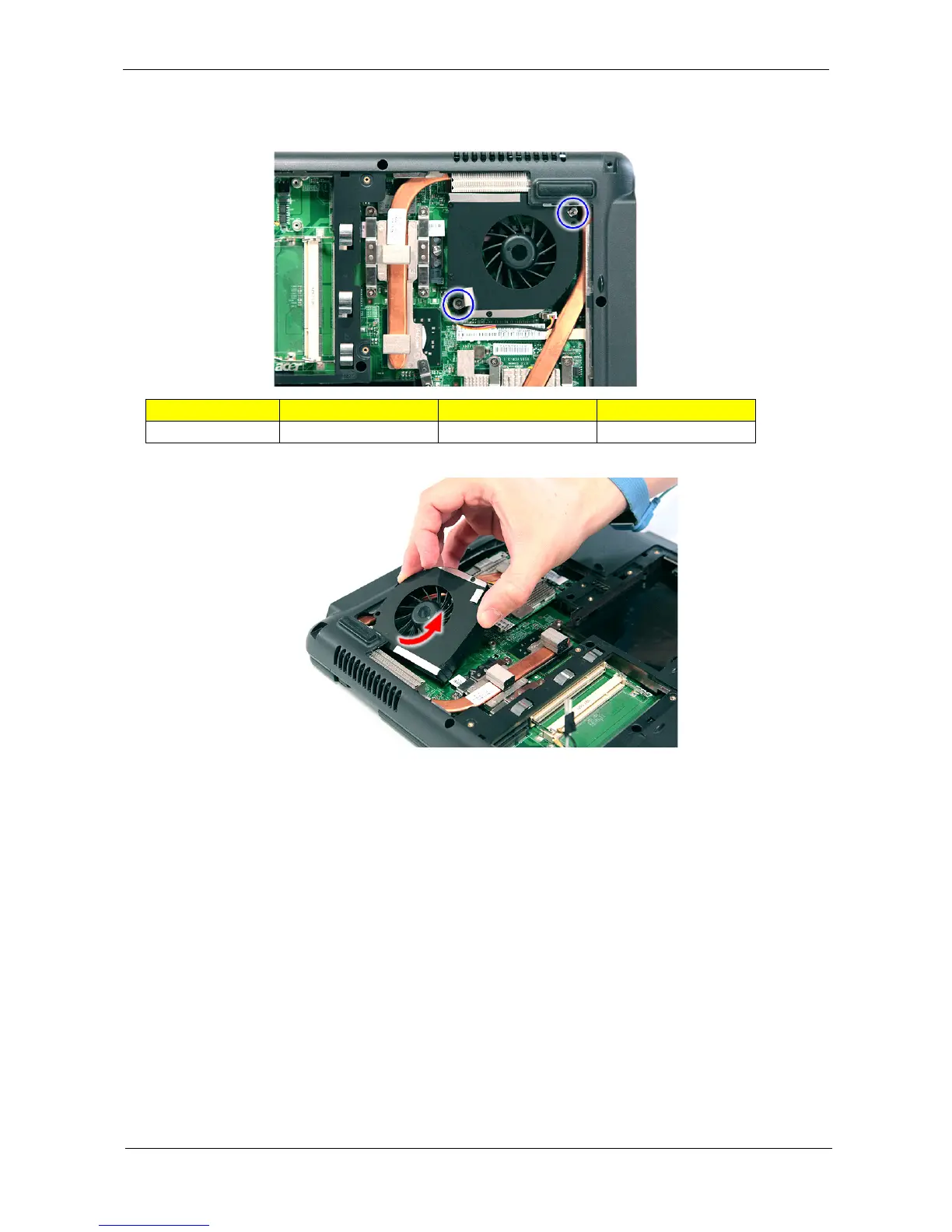

4. Remove the two screws (B) securing the heatsink fan module in place.
5. Carefully lift up the heatsink fan module.
Removing the CPU and VGA Heatsink Module
1. See “Removing the Battery Pack” on page 56.
2. See “Removing the Lower Cover” on page 59.
3. See “Removing the Heatsink Fan Module” on page 72.
Step Size (Quantity) Color Torque
1~2 M2 x L4 (2) Silver 1.6 kgf-cm
To Next Page
