Acer P1165E - Connector Information; Main Board Connectors

P1165E&P5260E 34
5 Connector Information
This section provides each connector location on boards and function of each board. They will
be useful for your detecting the defective boards.

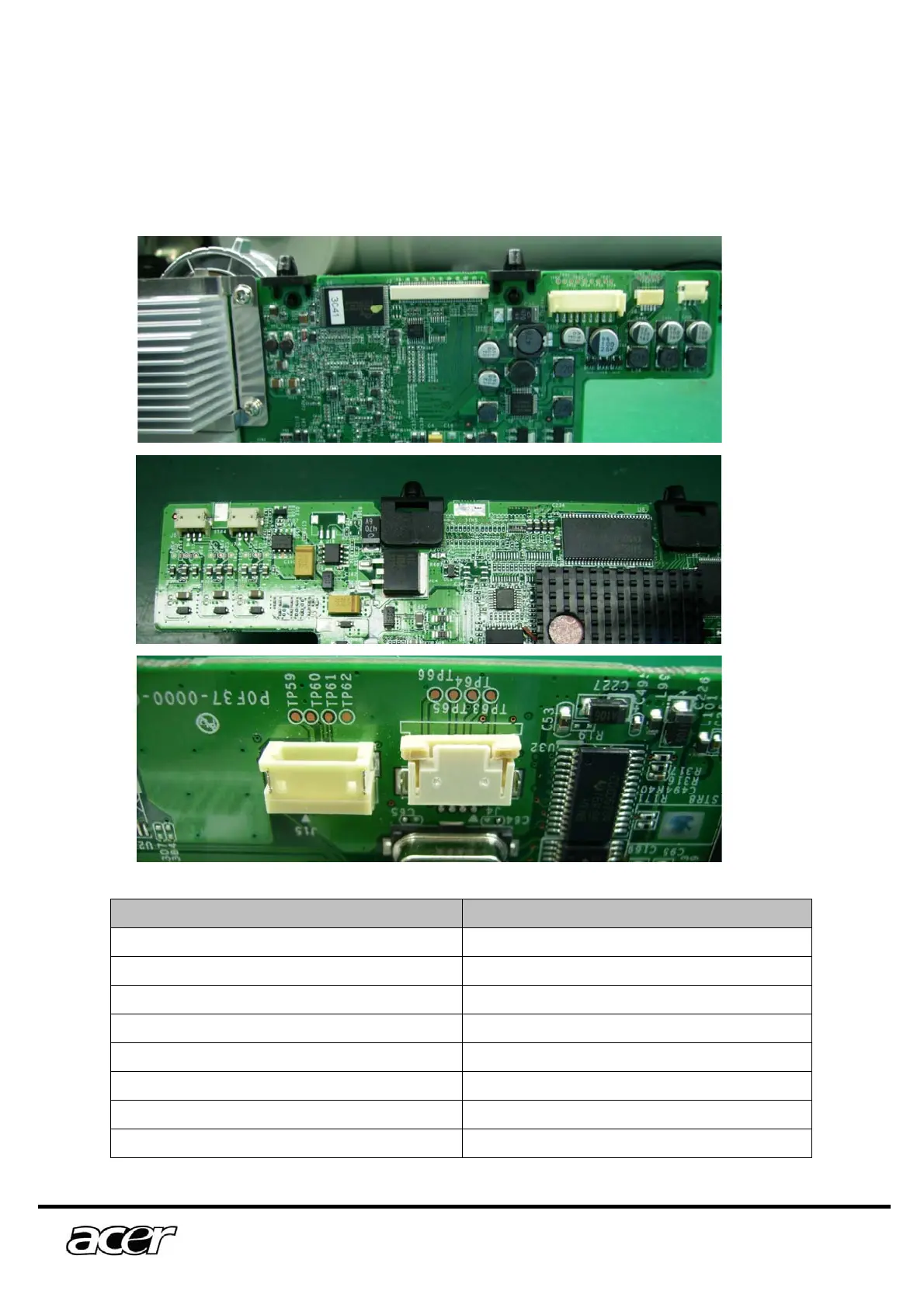

5.1 Main Board
Connector Description
No 1 Connect to I/O board
No 2 Power supply
No 3 Ballast control
No 4 Fan2
No 5 Fan1
No 6 Fan3
No 7 C/W sensor
No 8 Color wheel control
NO1
NO2
NO3
NO4
NO5
NO6
NO7 NO8
