Acer P1165E - I;O Board Connectors

P1165E&P5260E 38

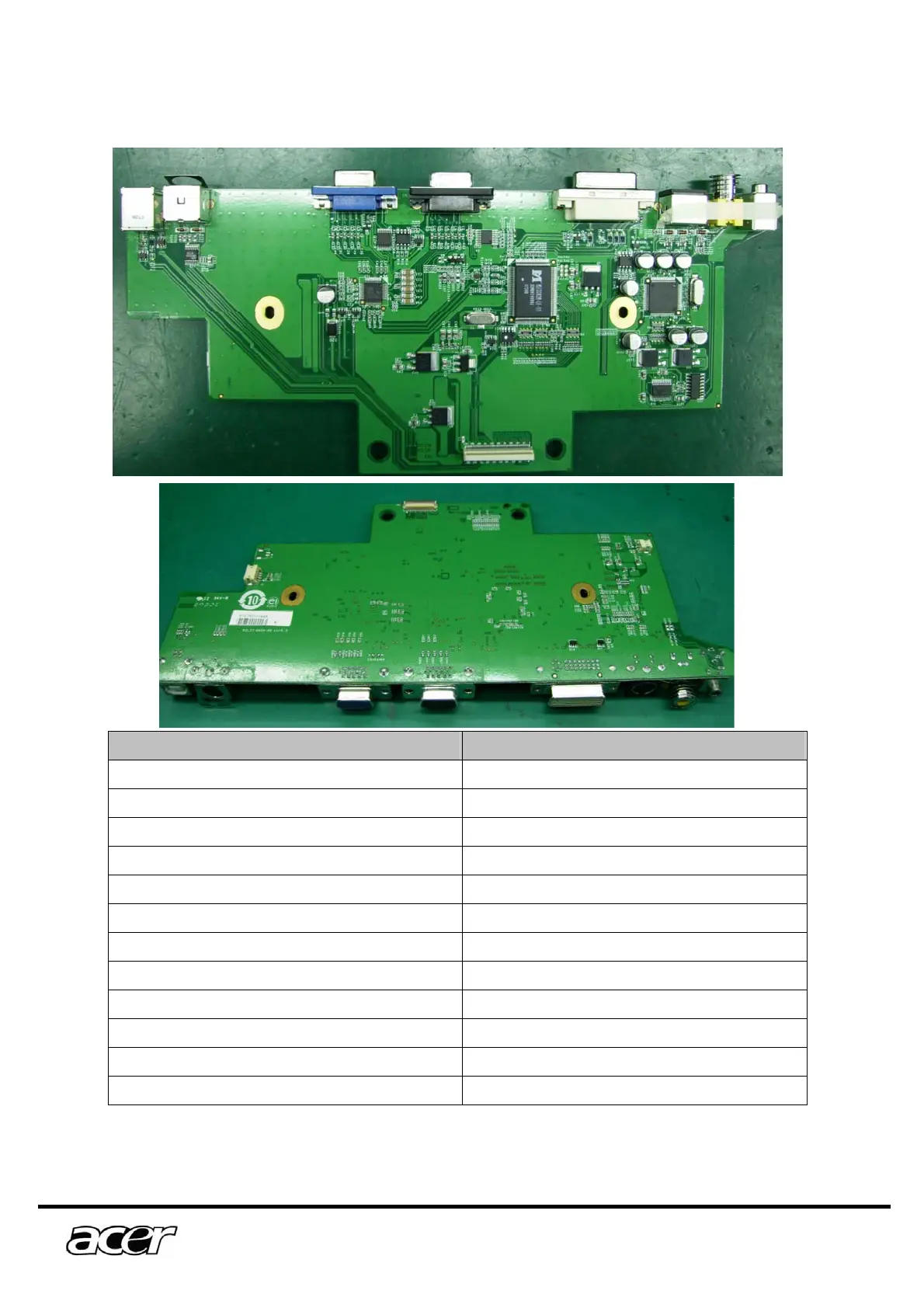

5.4 I/O Board
Connector Description
No 1 USB Connector
No 2 RS232 Jack
No 3 VGA Input
No 4 VGA OUT
No 5 DVI input
No 6 S-VIDEO Jack
No 7 VIDEO Jack
No 8 Audio Jack
No 9 I/O board connector
No 10 Front IR board
No 11 Keypad connector
No 12 Speaker
Notes: There is one more VGA connector for Model P5260E than Model P1165E, and also a
HDMI connector. The description just takes Model P1165E as example.
No 1 No 2
No 3 No 4 No 5 No 6 No 7 No 8
No 9
No 10
No 11 No 12
