Acer P1165E - Power Board Connectors

P1165E&P5260E 37

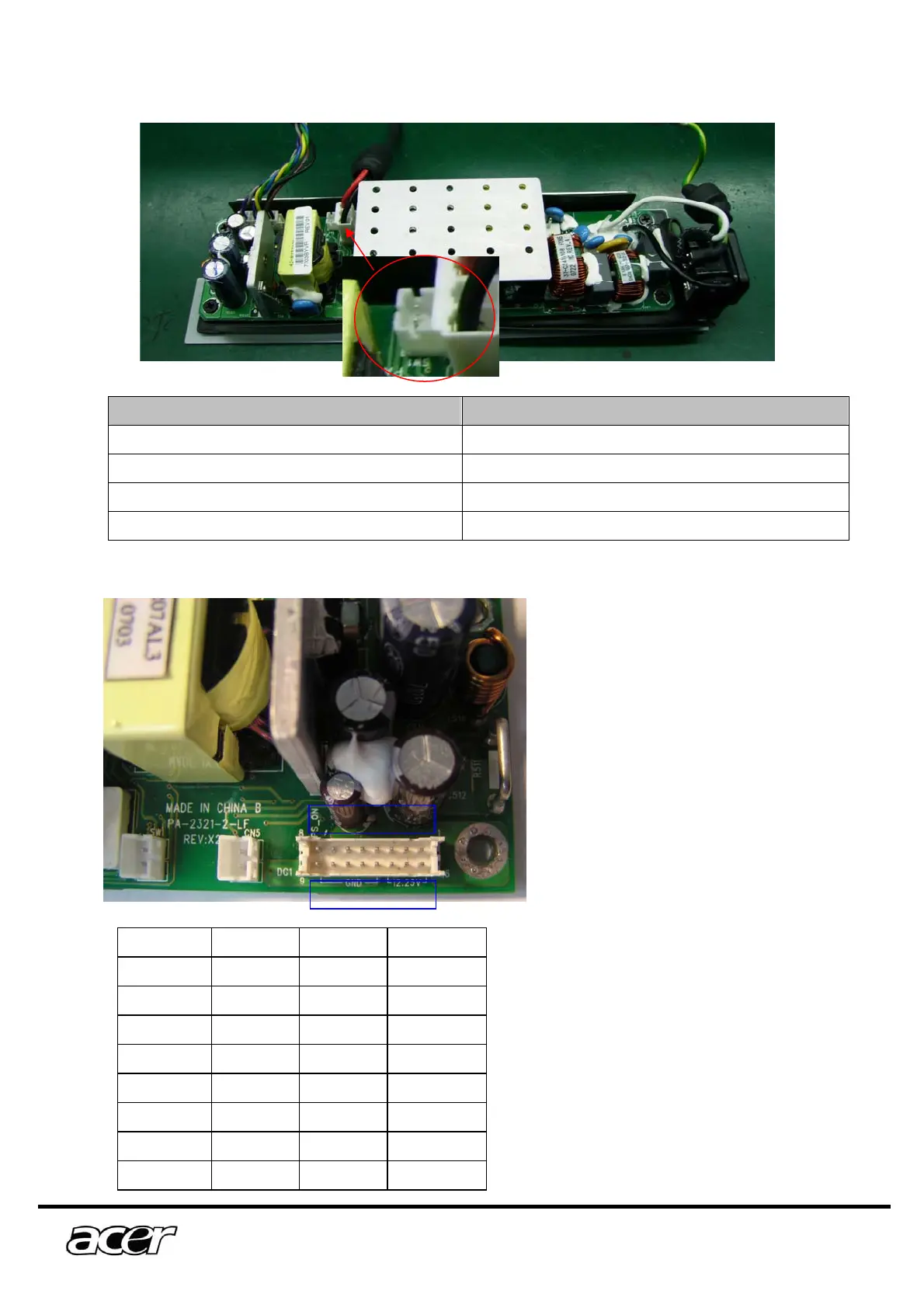

5.3 Power board
Connector to main board details
Connector Description
No 1 Connect to main board
No 2 Safety switch
No 3 Power supply for ballast
No 4 Thermal sensor
Pin Signal Pin Signal
1 +12.25V 9 GND
2 +12.25V 10 GND
3 +12.25V 11 GND
4 GND 12 GND
5 GND 13 GND
6 GND 14 +12.25V
7 GND 15 +12.25V
8 PFC - ON 16 +12.25V
No 1
No 4
No 3 No 2
8 1
9 16
