4. Assembly and Disassembly Procedures
ACER S230HL 28
Go to contents page
S10

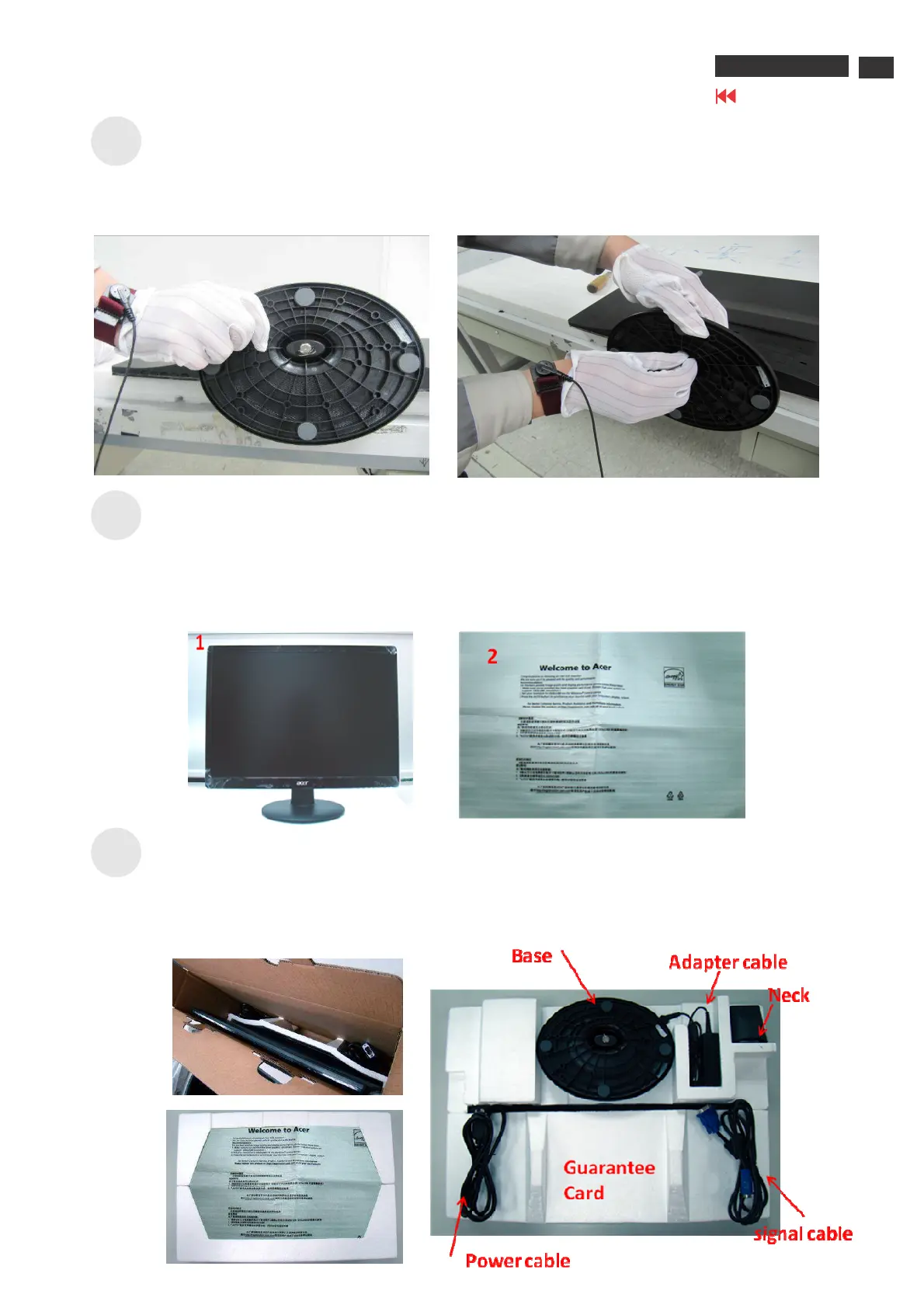

1: The base inserts to Neck’s bottom after sticking 4 rubber pads.
(Pad of foot = SILICON RUBBER/ D18.0*2.0t)(447C )
2: Tightening the screw by hand toward clockwise .
(Screw size = MAC. SCREW M4.0*10.0L,NI)
S11
1 2
1: Lifting up LCD monitor module .Connecting signal cable and power cord to monitor and turn it on for
functional inspection. Turn off the monitor and remove the signal cable and power cord from the monitor.
2: Removing the base unit and neck one separately from the monitor assembly.
Then take a EPE.bag to cover the LCD monitor.
※The words of welcome to Acer of EPE bag must be toward front.
S12
1: Putting down Monitor assembly of unit on the EPS-Bottom before putting specific carton.
2: Placing the folding power cable and the folding signal cable in EPS-Bottom’ back .
3: Then EPS-TOP covers the Monitor assembly of unit after placing the base unit
and neck unit and power adapter cable which’s position refers the picture.
