Acer S230HL User Manual

4. Assembly and Disassembly Procedure
ACER S230HL 30
Go to contents page

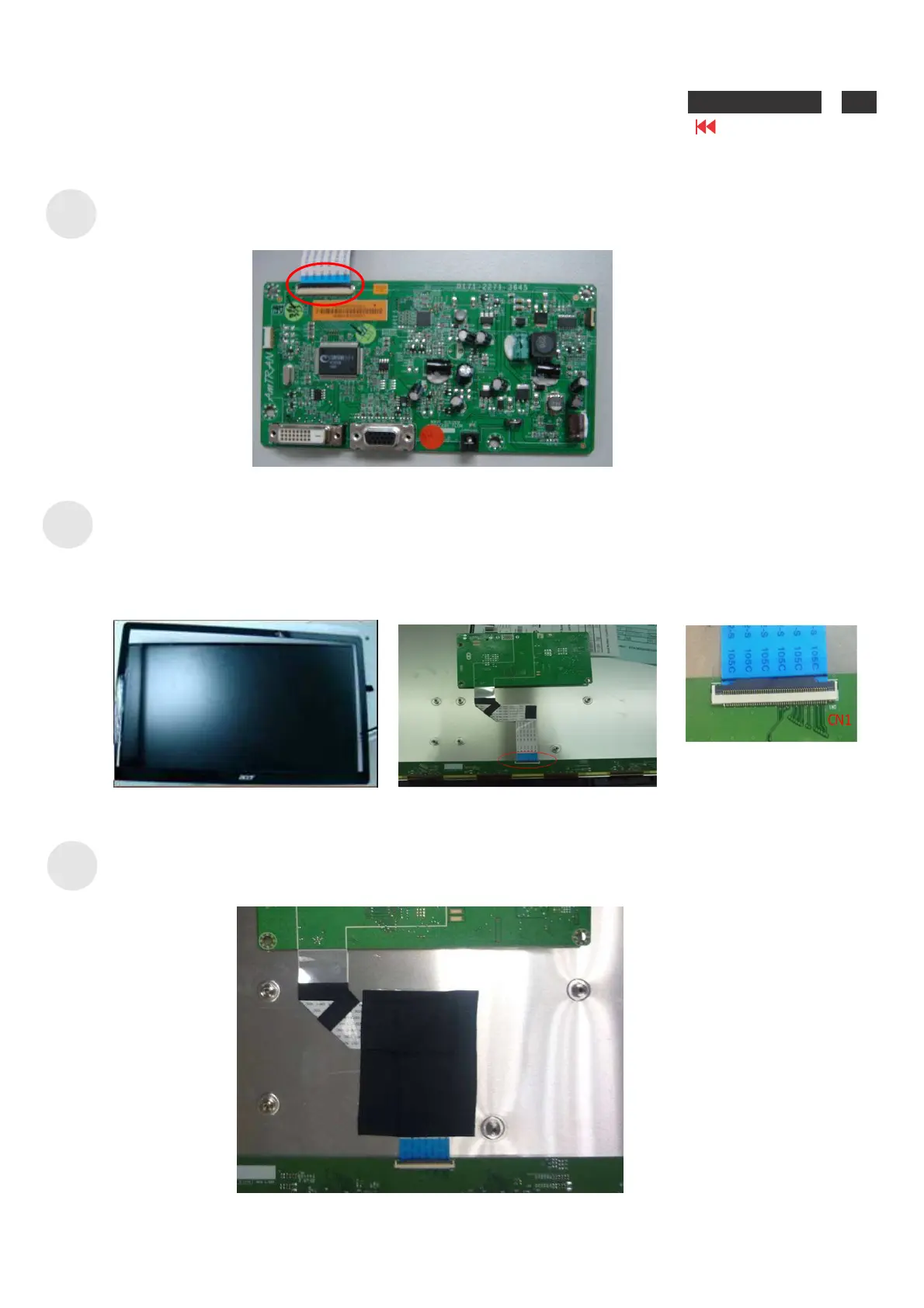

4.2 Assembly Procedures （ A+D monitor ） :
S1
1. Connecting LVDS cable to J3 connector of Main board.
S2
1: Putting the Panel on the protective cushion and let the glass side of panel face us. Then cover it with
Front Bezel
2: Turning over the panel.Put the main board on it and plug LVDS cable to CN1 connector of source
board (T-con).
S3
Using Acetate cloth tape to stick LVDS cable on the Panel firmly. (ACETATE CLOTH TAPE size= 60*80mm)
1
2
1
J3

Acer S230HL Specifications

General

3D	No
Aspect ratio	16:9
Display surface	-
Display diagonal	23 \
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	100000000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
USB Type-A downstream ports quantity	0
Certification	MPR II
Product color	Black
Panel mounting interface	- mm
AC input voltage	110 - 220 V
Power consumption (off)	0.4 W
Power consumption (standby)	0.45 W
Power consumption (typical)	22 W
Sustainability certificates	ENERGY STAR
Cables included	DVI, HDMI, VGA

Weight and Dimensions

Depth (with stand)	168 mm
Width (with stand)	548 mm
Height (with stand)	384 mm
Depth (without stand)	33.9 mm
Width (without stand)	548.5 mm
Height (without stand)	333.6 mm
Weight (without stand)	- g
