Acer V223HQ

- 27 -

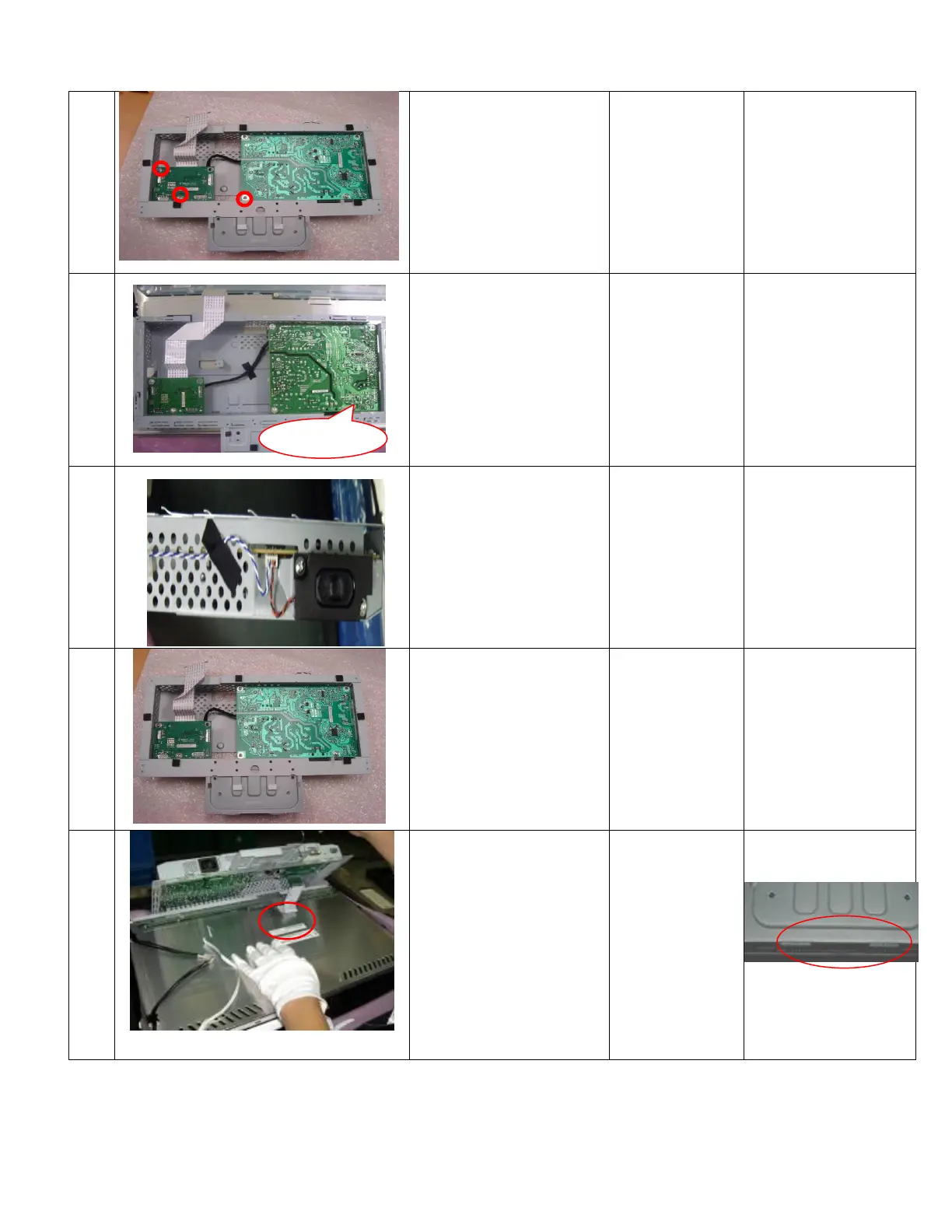

10
Lock 5 screws on the
PCBA board with this
order.
Screw-driver
11
Lock one grounded
screws on the SPS board
with order. Stick a acetic
tapes to fix the line which
connects the power board
and the interface board.
Screw-driver
12
Insect the SPK line to
Power board
13
Scan for fooling
PC
Card go with panel.
14
Fasten the LVDS to panel
and fix the Main-BKT to
CLM-F
The BKT must fixed
into the clip of the BZL
接地螺丝
