Acer V223HQ

- 28 -
15

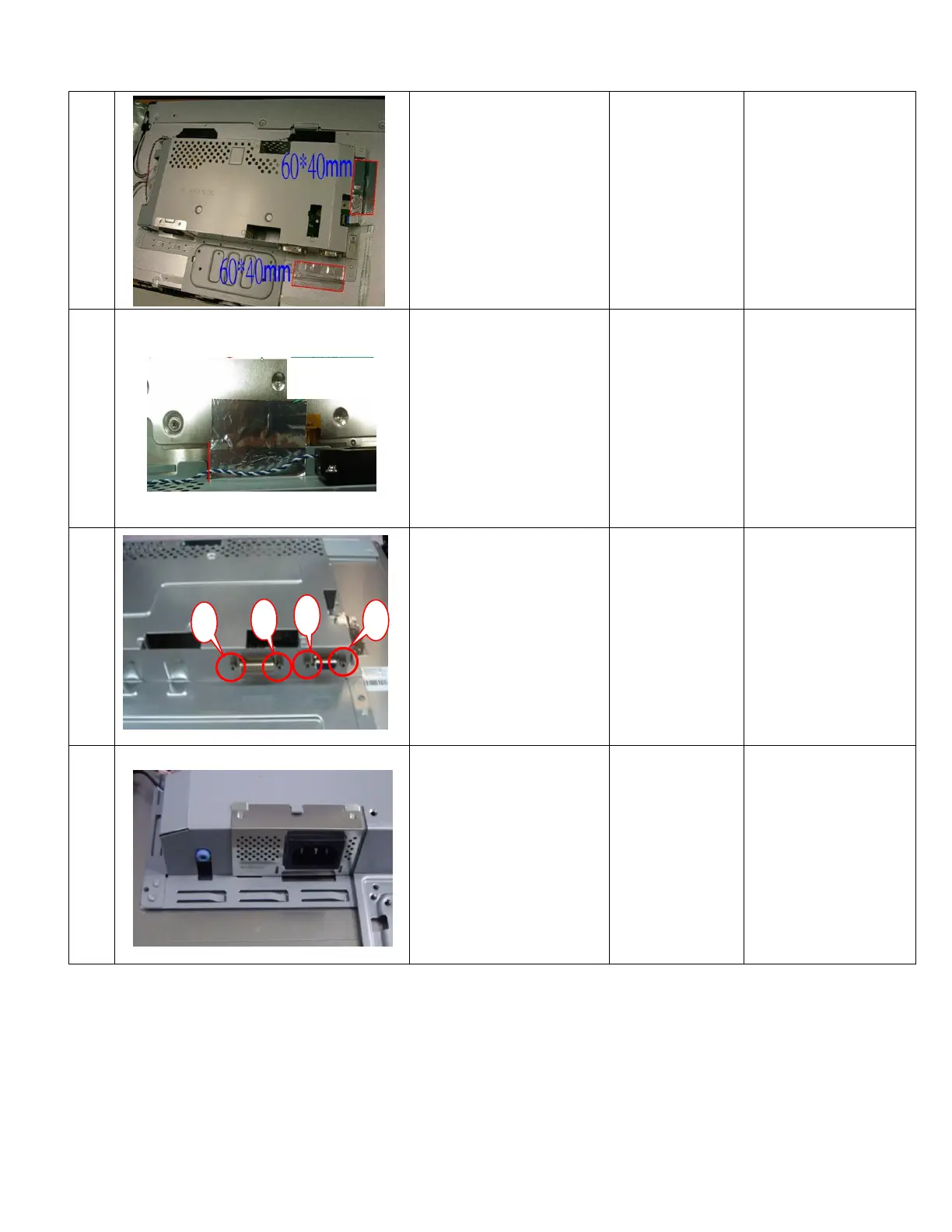

Stick two Al foils on the
right and under between
pane land Main-BTK
If none DVI，don’t
stick
the under AL foil
16
Stick an Al foils on top
between pane land Main-
BTK
17
Lock screws of side on
Main-Chassis with
2/4,based on DVI.
Attention the order by
one to four.
18
Assemble the L-SHD the
correct position reference
on the picture. Stick a
Mylar under the SPK
connect
3
4
1
2
