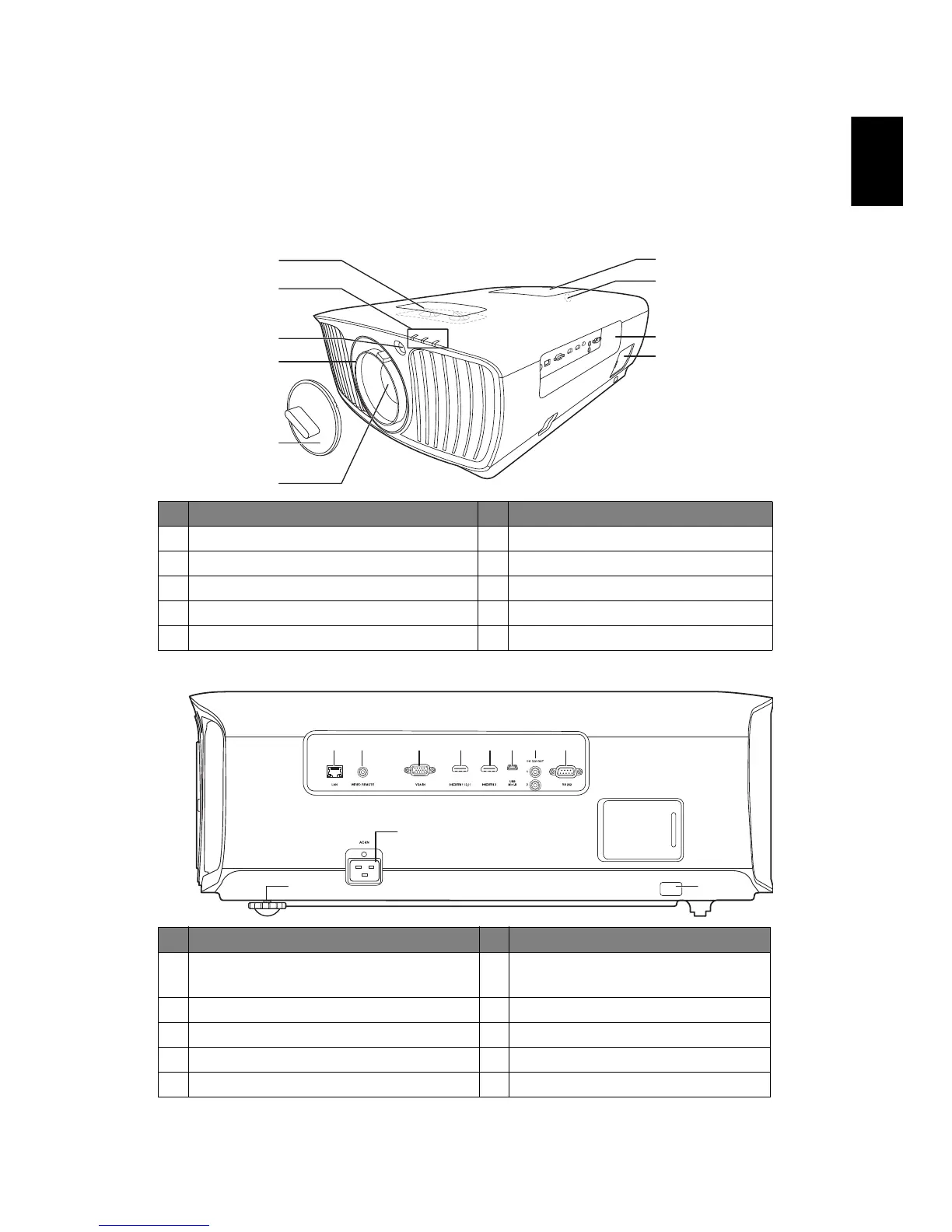

Projector Overview
Projector Outlook
Front/upper side
Side
# Description # Description
1 Lens shift adjustment knobs 6 Projection lens
2LED indicators 7Lamp cover
3 Remote control receiver 8 Connectors
4 Zoom ring and Focus ring 9 Control panel
5Lens cap
# Description # Description
1 LAN (RJ45 port for 10/100M
Ethernet)
6 12V DC output connector
2 Wired remote connector 7 RS232 connector
3 Analog RGB signal input connector 8 Tilt adjusting wheel
4 HDMI connector 9 Power socket
5 Mini USB connector 10 Kensington™ lock port
4
3
1
2
6
7
3
8
9
5
8
9
10
1 2 4 4 5 763
