Acond PRO-N - Meaning of Pictograms (Symbols)

Heat pumps AIR / WATER
Operation manual 22
7. Help – quick help page with heat pump control
8. Fault description - error codes display with short description

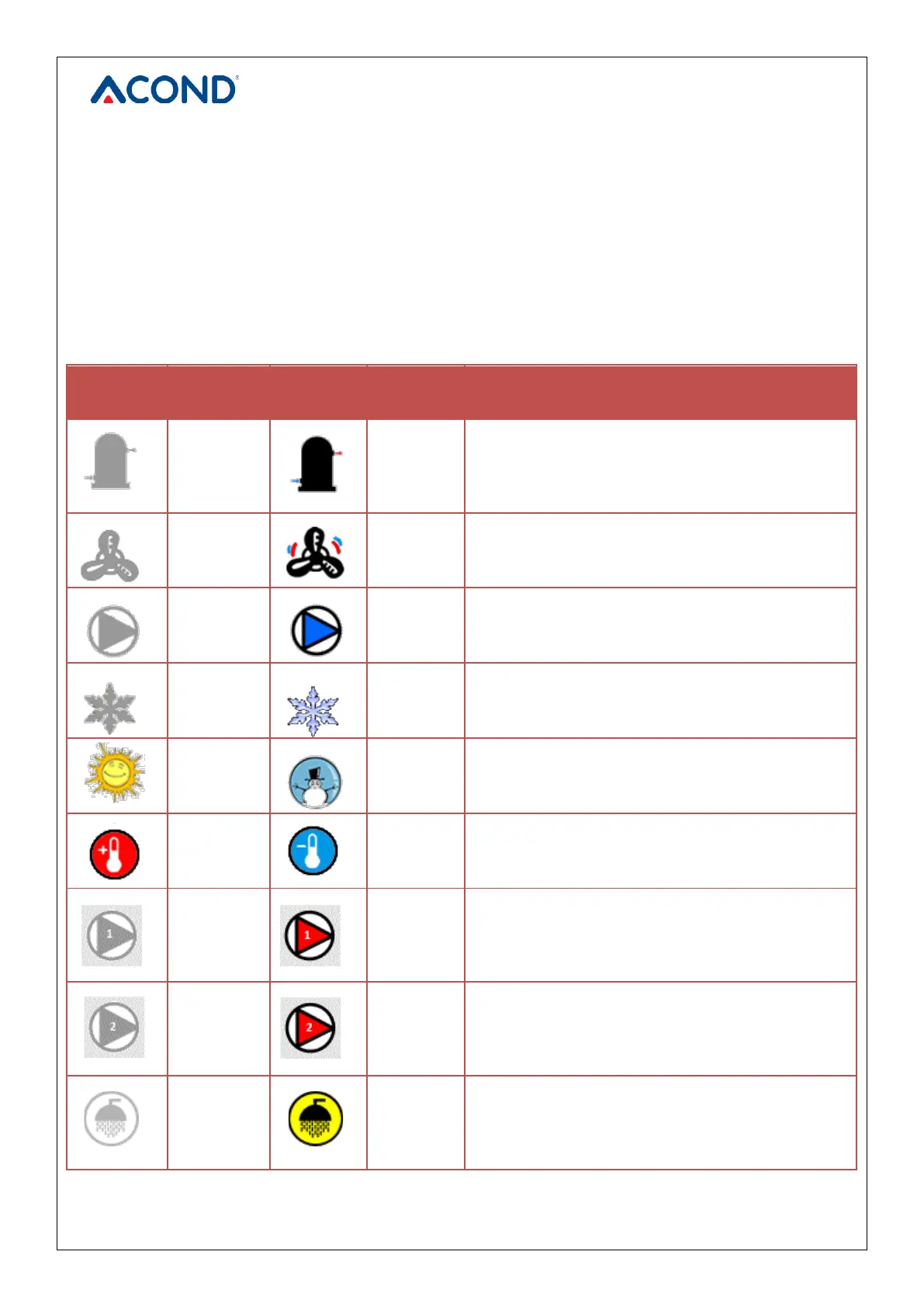

3.2.4 Meaning of pictograms (symbols)
In the white column between the menu and the temperature display there are pictograms
showing the status of the heat pump system components. The following table describes the
significance of individual pictograms.
pictogram
status
pictogra
m
status
description
Inactive
Active
Heat pump compressor
Inactive
Active
Heat pump fan
Inactive
Active
Circulating pump of heating pump
Inactive
Active
Heat pump defrosting
Winter and summer operation
Heating
Cooling
Heating / cooling mode display (if fitted)
Inactive
Active
Heating system circulation pump (only with
accumulation tank and pump installed in the
heating system)
Inactive
Active
Circulation pump of heating system 2nd
circuit (only if 2nd heating circuit is installed)
Inactive
Active
Heating of service water by means of a heat
pump (hydrobox) or heating bar (preheating,
electric boiler)
