Heat pumps AIR / WATER
Operation manual 32
3.2.13 Equipment

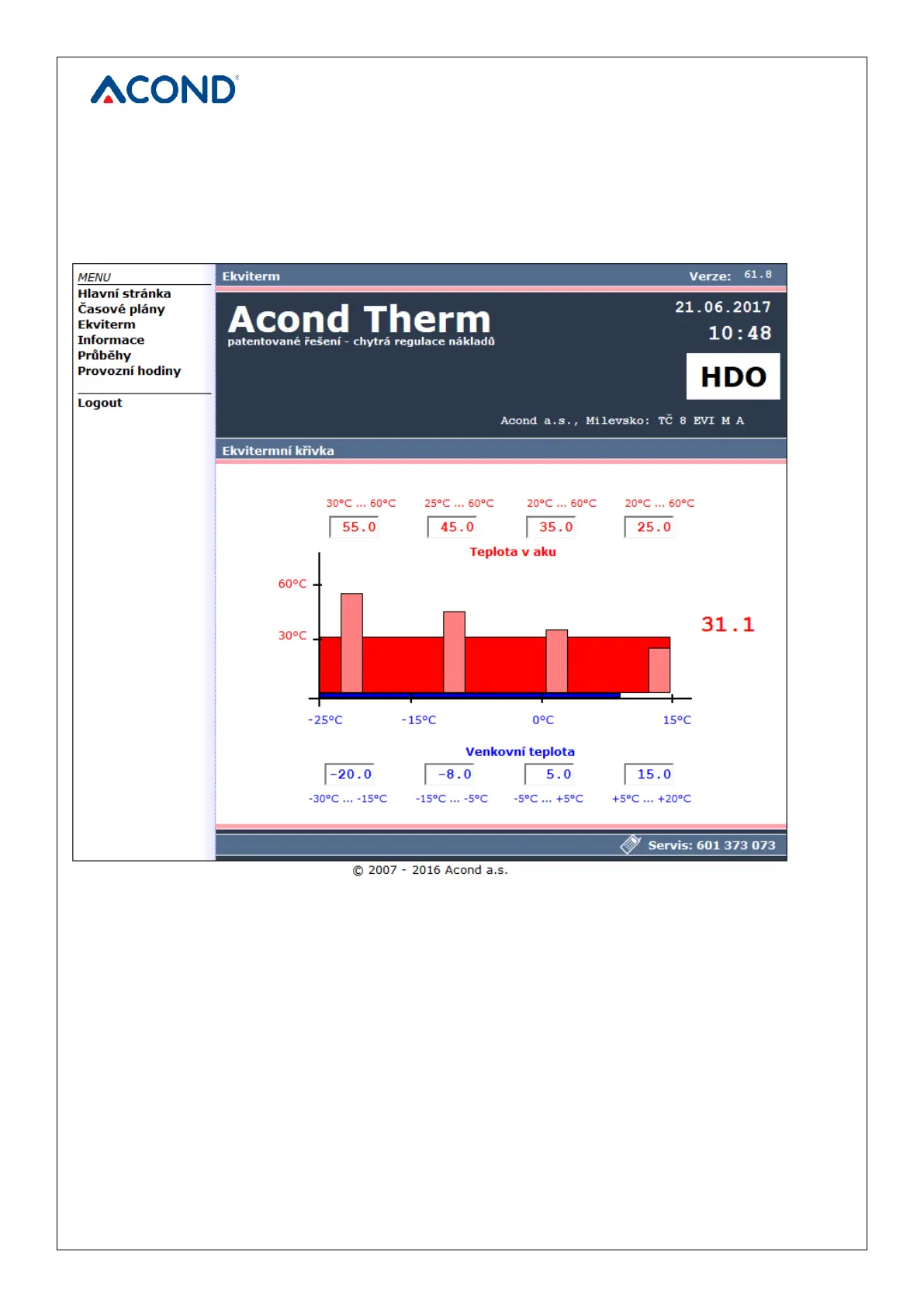

Clicking on the link in the Equipment menu displays a table with the equithermic control settings
(see Figure 14).
The blue numbers below the temperature graph indicate the outside temperature of the faults
(points) of the equithermic curve, and the red numbers above the graph indicate the
temperature of the domestic hot water corresponding to these faults (points). The large red
number in the right part of the graph corresponds to the temperature of the domestic hot water
calculated according to the specified equithermic curve depending on the current outdoor
temperature.
3.2.14 Periods
The page displays temperature trends over the past 24 hours. Below the curve graph there is a
legend with the colours of the curves of individual waveforms with checkboxes that allow to
