ACORN 80 Installation Manual
APPENDIX 10
Rationalisation Procedures

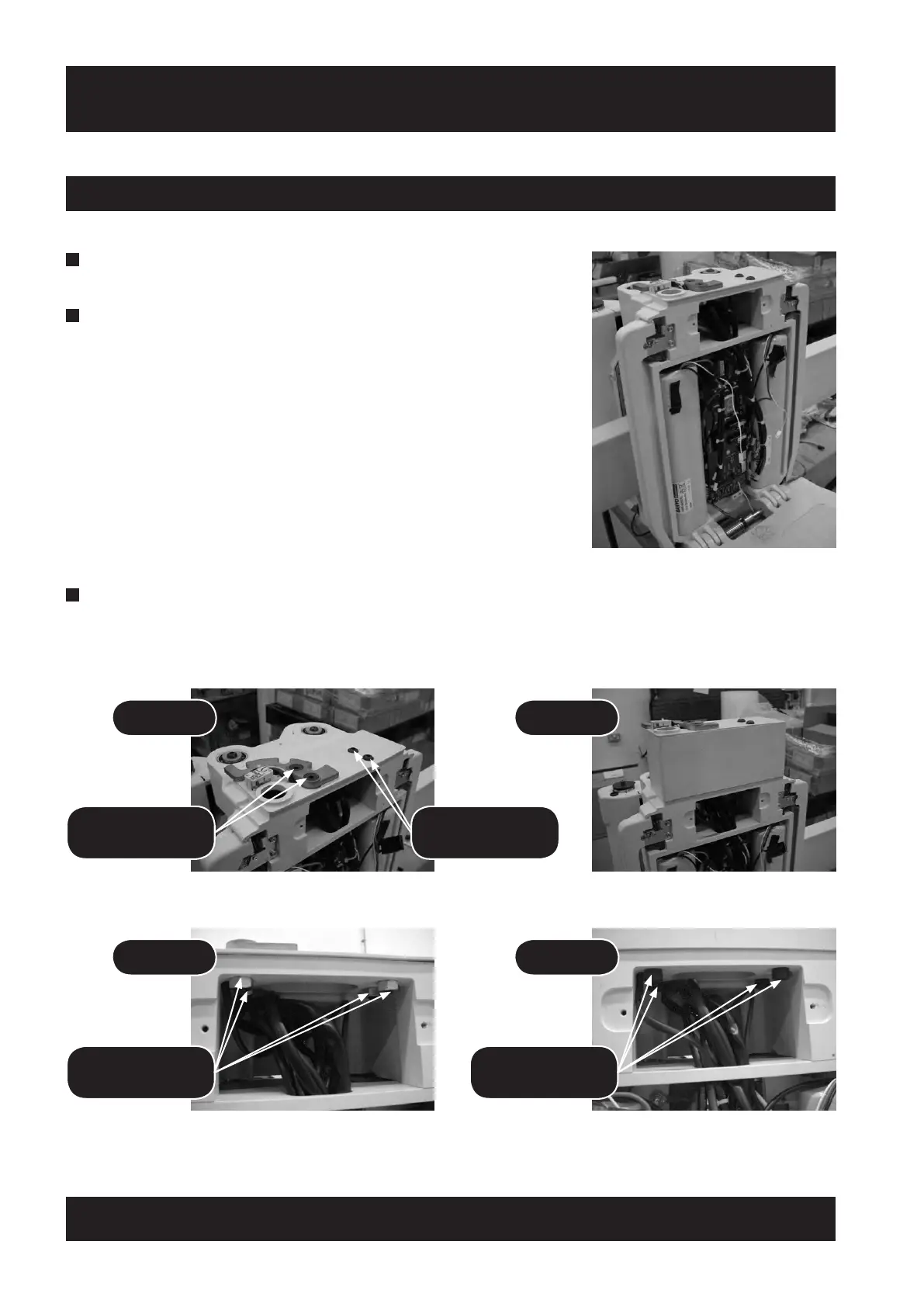

10.2 Replacing Seat Spacer On-site
1 Disconnect the seat from the Arm Harness, and remove the seat
from the carriage.
2 Remove Front cover from the carriage.
3 Remove Seat spacer cover from mainframe by either removing the 2 x M8 CSK screws (901045), 2 x Dome
head screws (1040250) and 4 off M8 nuts (900009) as shown in Option 1A/1B, or by removing the
4 x M8 x 20 (901200) screws as shown in Option 2A/2B.
REMOVE 2 x M8
CSK SCREW
901045
OPTION 1A OPTION 2A
REMOVE DOME
HEAD SCREWS
1040250
OPTION 1B OPTION 2B
REMOVE 4 x M8
NUTS
900009
REMOVE 4 x M8
x 20 SCREWS
901200
