ACORN 80 Installation Manual
APPENDIX 10
Rationalisation Procedures

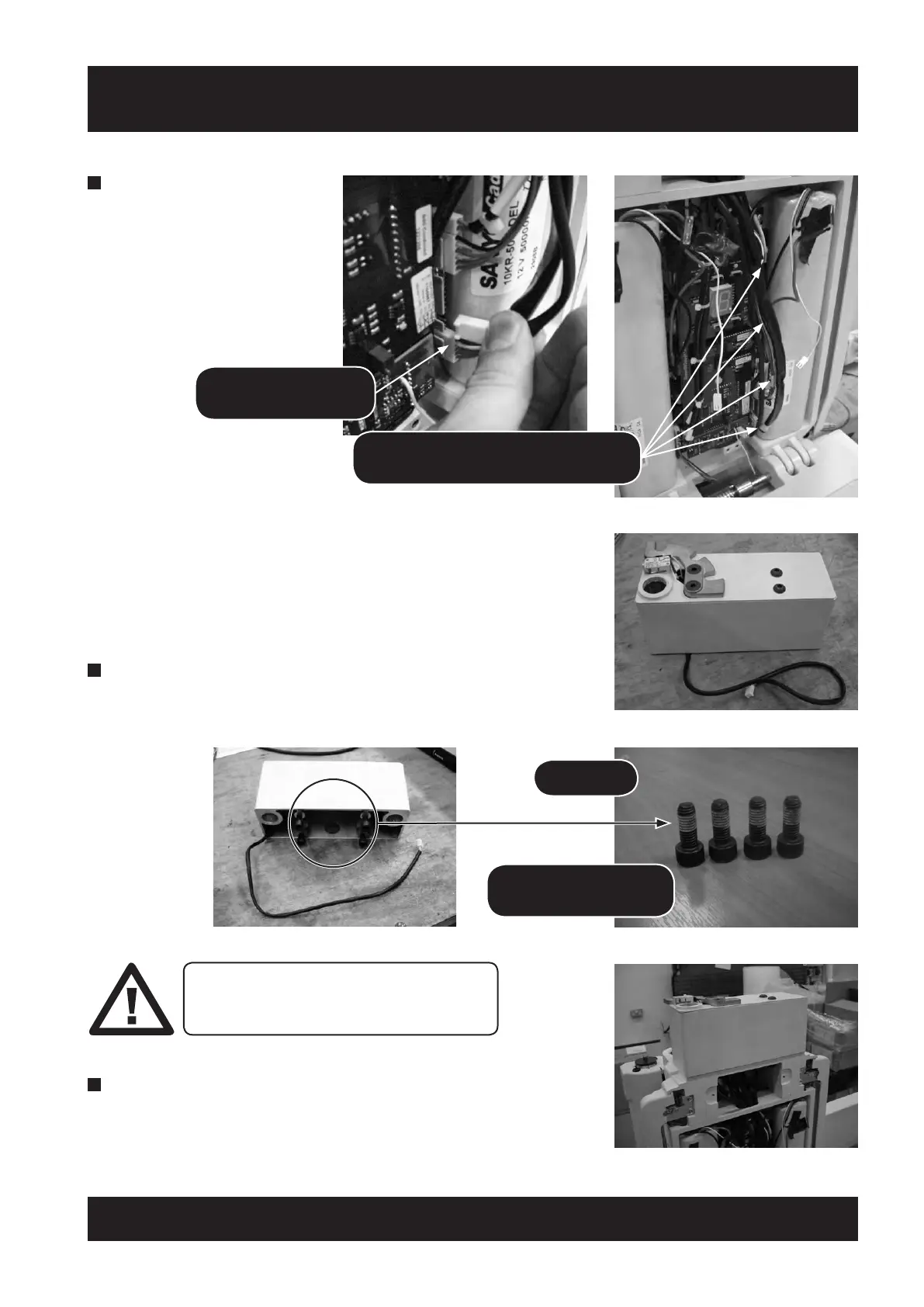

4 Disconnect the Seat
interlock harness from the
main PCB and remove all
the tie wraps that is
securing the harness in
position. Completely
remove the seat spacer
assembly.
REMOVE SEAT
INTERLOCK HARNESS
1243000 – 530 Seat Spacer complete L/H
1243002 – 550 Seat Spacer complete L/H
1243004 – 580 Seat Spacer complete L/H
1243001 – 530 Seat Spacer complete R/H
1243003 – 550 Seat Spacer complete R/H
1243005 – 580 Seat Spacer complete R/H
5 Take the required seat spacer assembly and remove the partly
screwed 4 x M8 x 20mm Socket Cap Head screws 902100 from
the bottom of the casting.
BOLTS SHOULD HAVE LOCTITE PATCH
ONTHREAD. IF NOT PRESENT LOCTITE
270 SHOULD BE USED
4 x M8 x 20 SOCKET
CAP HEAD SCREW
902100
PATCHED
6 Position the new Seat spacer assembly onto the mainframe
ensuring the hole for the Seat swivel pin is correctly aligned with
the hole on the mainframe casting and that the Seat interlock
harness is fed through the casting correctly.
REMOVE TIE-WRAPS SECURING THE
INTERLOCK HARNESS IN POSITION
